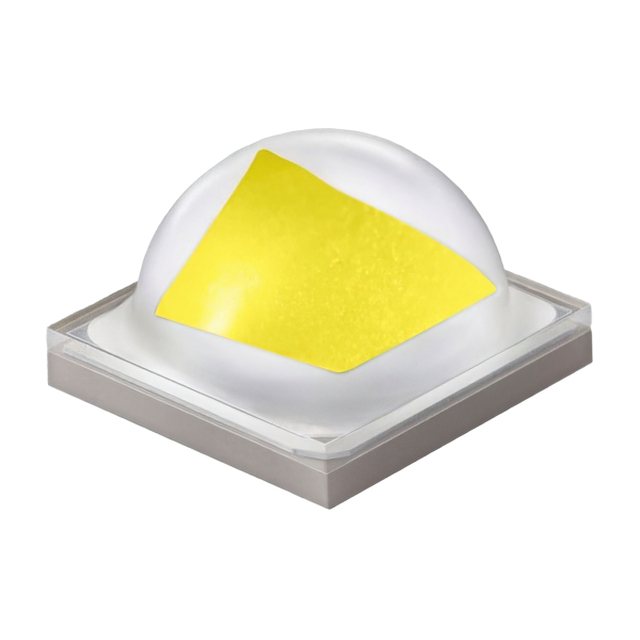

SPHWHTL3D50EE4VMPF

Samsung Semiconductor, Inc.

LED LH351C WARM WHT 3000K 1414

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPHWHTL3D50EE4VMPF

Samsung Semiconductor, Inc.

LED LH351C WARM WHT 3000K 1414

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPHWHTL3D50EE4VMPF

CCT (K)	3000 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	2 A
Flux @ 85°C, Current - Test	320 lm
Height - Seated (Max) [Max]	2.46 mm
Height - Seated (Max) [Max]	0.097 "
Lumens/Watt @ Current - Test	160 lm/W
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 in
Size / Dimension [y]	3.5 mm
Size / Dimension [y]	0.138 in
Supplier Device Package	1414
Thermal Resistance of Package [diameter]	3 °C/W
Viewing Angle	128 °
Voltage - Forward (Vf) (Typ)	2.85 V

SPHWHTL3 Series

...

Part	CRI (Color Rendering Index)	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Current - Max [Max]	Mounting Type	Color	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package	Current - Test	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	CCT (K)	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]
Samsung Semiconductor, Inc. SPHWHTL3DA0CF4VMY6	70	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	3 A	Surface Mount	Cool White	2.9 V	2.2 °C/W	1.05 A	510 lm	2.46 mm	0.097 "	3535
Samsung Semiconductor, Inc. SPHWHTL3D50CE4WMMF	70	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	2 A	Surface Mount	Warm White	2.9 V			280 lm	2.46 mm	0.097 "	3535	250 lm	310 lm	138 lm/W	3 °C/W	2700 K
Samsung Semiconductor, Inc. SPHWHTL3DA0GF4W0N6	90	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	3 A	Surface Mount	Warm White	3 V	2.2 °C/W	1.05 A	330 lm	2.46 mm	0.097 "	3535	300 lm	360 lm	105 lm/W		2700 K
Samsung Semiconductor, Inc. SPHWHTL3DA0EF4VMT6	80	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	3 A	Surface Mount	Warm White	2.9 V	2.2 °C/W	1.05 A	430 lm	2.46 mm	0.097 "	3535	400 lm	450 lm	141 lm/W		3000 K
Samsung Semiconductor, Inc. SPHWHTL3DA0EF4QRU6	80	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	3 A	Surface Mount	Cool White	3 V	2.2 °C/W	1.05 A	450 lm	2.46 mm	0.097 "	3535			143 lm/W		5300 K
Samsung Semiconductor, Inc. SPHWHTL3D50CE4W0MF	70	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	2 A	Surface Mount	Warm White	2.9 V			280 lm	2.46 mm	0.097 "	3535	250 lm	310 lm	138 lm/W	3 °C/W	2700 K
Samsung Semiconductor, Inc. SPHWHTL3D303E6RTM2	70	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	125 °	1.5 A	Surface Mount	Cool White	2.95 V		350 mA				3535			145 lm/W		5000 K	150 lm	160 lm	140 lm	2.02 mm	0.08 in	4 °C/W
Samsung Semiconductor, Inc. SPHWHTL3D50EE4VMPF	80	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	2 A	Surface Mount	Warm White	2.85 V			320 lm	2.46 mm	0.097 "	1414			160 lm/W	3 °C/W	3000 K
Samsung Semiconductor, Inc. SPHWHTL3D50EE4WPKF	80	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	2 A	Surface Mount	Warm White	2.9 V			260 lm	2.46 mm	0.097 "	3535			128 lm/W	3 °C/W	2700 K
Samsung Semiconductor, Inc. SPHWHTL3D50EE4V0MF	80	3535 Metric	1414	3.5 mm	3.5 mm	0.138 in	0.138 in	128 °	2 A	Surface Mount	Warm White	2.9 V			280 lm	2.46 mm	0.097 "	3535	250 lm	310 lm	138 lm/W	3 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.31
		10	$ 0.93
		100	$ 0.69
	Digi-Reel®	1	$ 1.31
		10	$ 0.93
		100	$ 0.69
	Tape & Reel (TR)	800	$ 0.56
		1600	$ 0.53
		2400	$ 0.52
		4000	$ 0.50
		5600	$ 0.49
		8000	$ 0.48
		20000	$ 0.46

Description

General part information

SPHWHTL3 Series

LED Lighting LH351C White, Warm 3000K 3-Step MacAdam Ellipse 2.85V 700mA 128° 1414 (3535 Metric)
