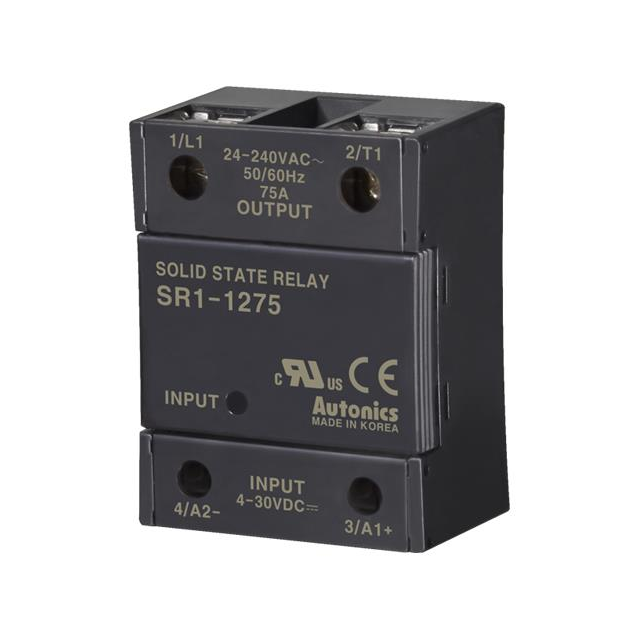

SR1-1275-N
ActiveAUTONICS
SSR RELAY SPST-NO 75A 24-240V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR1-1275-N
ActiveAUTONICS
SSR RELAY SPST-NO 75A 24-240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR1-1275-N |
|---|---|
| Load Current | 75 A |
| Mounting Type | Chassis Mount or Panel Mount |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Supplier Device Package | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 30 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 240 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.00 | |
Description
General part information
SR1-1275 Series
Solid State SPST-NO (1 Form A) Module
Documents
Technical documentation and resources
