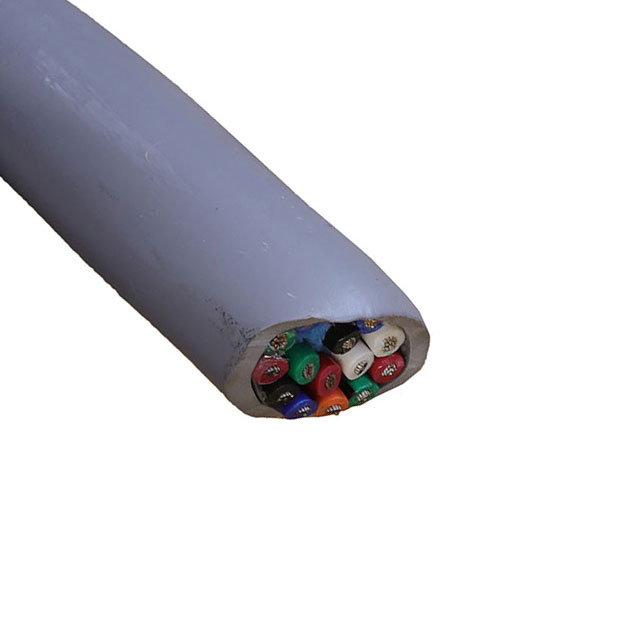

1075 SL001
ActiveALPHA WIRE
CABLE 15COND 16AWG SLATE
Deep-Dive with AI
Search across all available documentation for this part.
1075 SL001
ActiveALPHA WIRE
CABLE 15COND 16AWG SLATE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1075 SL001 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 0.0117 in |
| Jacket (Insulation) Diameter [diameter] | 17.63 mm |
| Jacket (Insulation) Diameter [diameter] | 0.694 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.6 mm |
| Jacket (Insulation) Thickness | 0.063 in |
| Jacket Color | Slate |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 15 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Usage | Control, Communication |
| Voltage | 600 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 11.70 | |
Description
General part information
1075 Series
15 Conductor Multi-Conductor Cable Slate 16 AWG 1000.0' (304.8m)
