V15H22-CZ100

Active

Honeywell Sensing and Productivity Solutions

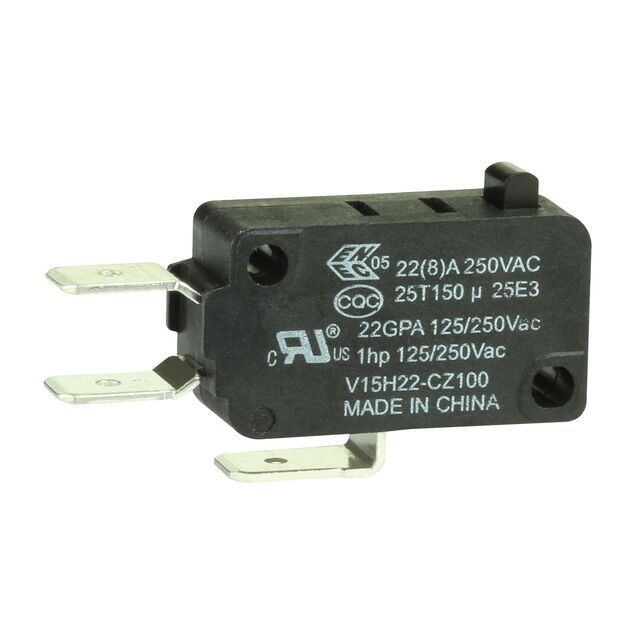

SWITCH SNAP ACTION SPDT 22A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V15H22-CZ100

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 22A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V15H22-CZ100

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	22 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	100 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-25 °C
Overtravel	0.76 mm
Overtravel	0.03 in
Pretravel	1.5 mm
Pretravel	0.06 in
Release Force	25 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

V15H2 Series

Part	Operating Force	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Current Rating (Amps)	Circuit	Overtravel	Overtravel	Actuator Type	Differential Travel	Differential Travel	Mounting Type	Voltage Rating - AC	Mechanical Life	Operating Position	Operating Position	Release Force	Termination Style	Pretravel	Pretravel	Pretravel	Overtravel [x]	Overtravel [x]
Honeywell Sensing and Productivity Solutions V15H22-CP100A02-K	60 gf	Off-Mom	150 °C	-25 °C	10000 Cycles	22 A	SPST-NO	0.051 in	1.3 mm	Lever Straight	0.047 in	1.2 mm	Chassis Mount	250 V	5000000 Cycles	15.3 mm	0.602 "	10 gf	Quick Connect - 0.250" (6.3mm)	3.2 mm	0.125 in
Honeywell Sensing and Productivity Solutions V15H22-CZ100	100 gf	On-Mom	150 °C	-25 °C		22 A	SPDT	0.03 in	0.76 mm	Round (Pin Plunger)	0.02 in	0.5 mm	Chassis Mount	125 V	1000000 Cycles	14.7 mm	0.579 in	25 gf	Quick Connect - 0.250" (6.3mm)		1.5 mm	0.06 in
Honeywell Sensing and Productivity Solutions V15H22-CZ100A03-K	30 gf	On-Mom	150 °C	-25 °C	10000 Cycles	22 A	SPDT			Lever Straight	0.094 in	2.4 mm	Chassis Mount	250 V	5000000 Cycles	15.3 mm	0.602 "		Quick Connect - 0.250" (6.3mm)		6.4 mm	0.252 in	2.6 mm	0.102 in
Honeywell Sensing and Productivity Solutions V15H22-CZ300A05-K	350 gf	On-Mom	150 °C	-25 °C	10000 Cycles	22 A	SPDT	0.03 in	0.76 mm	Lever Roller	0.016 "	0.4 mm	Chassis Mount	250 V	1000000 Cycles	20.6 mm	0.812 in	60 gf	Quick Connect - 0.250" (6.3mm)		1.6 mm	0.063 in
Honeywell Sensing and Productivity Solutions V15H22-CZ300-K	300 gf	On-Mom	150 °C	-25 °C	10000 Cycles	22 A	SPDT	0.03 in	0.76 mm	Round (Pin Plunger)	0.016 "	0.4 mm	Chassis Mount	250 V	1000000 Cycles	14.7 mm	0.579 in	75 gf	Quick Connect - 0.250" (6.3mm)		1.6 mm	0.063 in
Honeywell Sensing and Productivity Solutions V15H22-CZ100A06-K	60 gf	On-Mom	150 °C	-25 °C	10000 Cycles	22 A	SPDT	0.051 in	1.3 mm	Lever Roller	0.047 in	1.2 mm	Chassis Mount	250 V	5000000 Cycles	20.6 mm	0.812 in	10 gf	Quick Connect - 0.250" (6.3mm)	3.2 mm	0.125 in
Honeywell Sensing and Productivity Solutions V15H22-CP200B03-K	32 gf	Off-Mom	150 °C	-25 °C	10000 Cycles	22 A	SPST-NO	0.209 "	5.3 mm	Lever Straight	0.138 in	3.5 mm	Chassis Mount	250 V	5000000 Cycles	15.3 mm	0.602 "	8 gf	Quick Connect - 0.250" (6.3mm)
Honeywell Sensing and Productivity Solutions V15H22-CZ100A02	60 gf	On-Mom	150 °C	-25 °C		22 A	SPDT	0.051 in	1.3 mm	Lever Straight	0.047 in	1.2 mm	Chassis Mount	125 V	1000000 Cycles	15.3 mm	0.602 "	10 gf	Quick Connect - 0.250" (6.3mm)	3.2 mm	0.125 in
