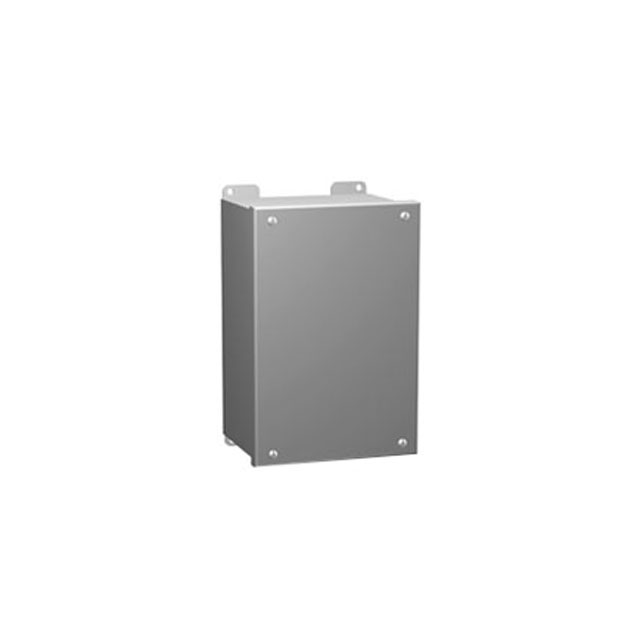

1436C

Active

Hammond Manufacturing

BOX STEEL GRAY 8"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

1436C

Active

Hammond Manufacturing

BOX STEEL GRAY 8"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1436C

Area (L x W)	26 in²
Area (L x W)	168 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Height [z]	69.85 mm
Height [z]	2.75 in
Material	Metal, Steel
Ratings	IP54, UL-508, NEMA 13, NEMA 12
Size / Dimension [x]	8 "
Size / Dimension [x]	203.2 mm
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	14 Gauge
Weight	1.4 kg
Weight	3.1 lbs

1436 Series

Part	Material	Thickness	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Color	Design	Weight	Weight	Size / Dimension [y]
Hammond Manufacturing 1436V	Metal Steel	14 Gauge	Box	355.6 mm	14 in	10.75 in	273.05 mm	IP54 NEMA 12 NEMA 13 UL-508	76.2 mm	3 in	974 cm²	151 in²	Gray	Hinged Door Lid	11 lbs	5 kg
Hammond Manufacturing 1436C	Metal Steel	14 Gauge	Box	203.2 mm	8 "	3.25 "	82.55 mm	IP54 NEMA 12 NEMA 13 UL-508	69.85 mm	2.75 in	168 cm²	26 in²	Gray	Cover Included	3.1 lbs	1.4 kg
Hammond Manufacturing 1436A	Metal Steel	14 Gauge	Box	88.9 mm	3.5 in	3.25 "	82.55 mm	IP54 NEMA 12 NEMA 13 UL-508	69.85 mm	2.75 in	74 cm²	11.5 in²	Gray	Cover Included	2 lbs	907.2 g
Hammond Manufacturing 1436S	Metal Steel	14 Gauge	Box	298.45 mm	11.75 in	10.75 in	273.05 mm	IP54 NEMA 12 NEMA 13 UL-508	76.2 mm	3 in	813 cm²	126 in²	Gray	Hinged Door Lid	9 lbs	4.1 kg
Hammond Manufacturing 1436D	Metal Steel	14 Gauge	Box	260.35 mm	10.25 "	3.25 "	82.55 mm	IP54 NEMA 12 NEMA 13 UL-508	69.85 mm	2.75 in	215 cm˛	33.3 in²	Gray	Cover Included	4 lbs	1.8 kg
Hammond Manufacturing 1436F	Metal Steel	14 Gauge	Box	184.15 mm	7.25 in	6.25 "	158.75 mm	IP54 NEMA 12 NEMA 13 UL-508	76.2 mm	3 in	292 cm²	45.3 in²	Gray	Hinged Door Lid	5 lbs	2.3 kg
Hammond Manufacturing 1436H	Metal Steel	14 Gauge	Box	241.3 mm	9.5 "	6.25 "	158.75 mm	IP54 NEMA 12 NEMA 13 UL-508	76.2 mm	3 in	383 cm²	59.4 in²	Gray	Hinged Door Lid	5 lbs	2.3 kg
Hammond Manufacturing 1436B	Metal Steel	14 Gauge	Box	146.05 mm	5.75 in	3.25 "		IP54 NEMA 12 NEMA 13 UL-508	69.85 mm	2.75 in	121 cm²	18.7 in²	Gray	Cover Included	2 lbs	907.2 g	82.55 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 82.74
		5	$ 70.70
		10	$ 66.08
		25	$ 63.08
	Retail Package	700	$ 0.20

Description

General part information

1436 Series

Box Metal, Steel Gray Cover Included 8.000" L x 3.250" W (203.20mm x 82.55mm) X 2.750" (69.85mm)

Documents

Technical documentation and resources

No documents available
