1766204

Active

Phoenix Contact

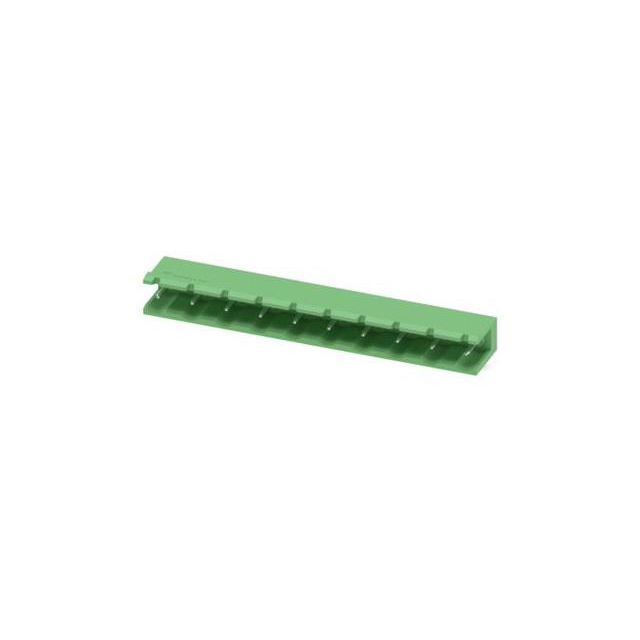

PLUGGABLE TERMINAL BLOCKS 10 POS 7.62MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1766204

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 10 POS 7.62MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1766204

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	12 A
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	8.61 mm
Insulation Height	0.339 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	10
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	10
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - IEC	630 V
Voltage - UL	300 V

GMSTB Series

Pluggable Terminal Blocks 7 Pos 7.62mm pitch Through Hole Header

Part	Current - IEC	Positions Per Level	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Levels	Color	Type	Number of Positions	Housing Material	Insulation Height	Insulation Height	Voltage - IEC	Contact Mating Finish	Voltage - UL	Mounting Type	Termination Style	Contact Tail Length	Contact Tail Length	Header Orientation	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Wire Strip Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Screw Size	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Current - UL
Phoenix Contact 1766178	12 A	7	UL94 V-0	0.3 in	7.62 mm	1	Green	Header Male Pins Shrouded (2 Side)	7	Polyamide (PA) Nylon	8.61 mm	0.339 "	630 V	Tin	300 V	Through Hole	Solder	3.5 mm	0.138 in	90° Right Angle
Phoenix Contact 1805987	12 A	2	UL94 V-0	0.3 in	7.62 mm	1	Green	Plug Female Sockets	2	Polyamide (PA) Nylon	15 mm	0.591 in	1 kV	Tin	300 V	Free Hanging (In-Line)	Screw - Pressure Clip				0.2 mm²	2.5 mm²	Mating Flange Retention Latches (Non-Wire Side)	10 mm	30 AWG	12 AWG	M3	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm
Phoenix Contact 1714294	16 A	4	UL94 V-0	0.3 in	7.62 mm	1	Green	Plug Female Sockets	4	Polyamide (PA) Nylon	17.5 mm	0.689 in	1 kV	Tin		Free Hanging (In-Line)	Screw - Rising Cage Clamp							8 mm	30 AWG	12 AWG	M3	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	0.2 mm˛	2.5 mm˛	18.5 A
Phoenix Contact 1806177	12 A	8	UL94 V-0	0.3 in	7.62 mm	1	Green	Plug Female Sockets	8	Polyamide (PA) Nylon	15 mm	0.591 in	1 kV	Tin	300 V	Free Hanging (In-Line)	Screw - Pressure Clip				0.2 mm²	2.5 mm²		10 mm	30 AWG	12 AWG	M3	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm
Phoenix Contact 1710939	12 A	3	UL94 V-0	0.3 in	7.62 mm	1	Green	Header Male Pins Shrouded (4 Side)		Polyamide (PA) Nylon	8.61 mm	0.339 "	630 V	Tin	300 V	Through Hole	Solder	3.5 mm	0.138 in	90° Right Angle			Mating and Mounting Flange
Phoenix Contact 1766204	12 A	10	UL94 V-0	0.3 in	7.62 mm	1	Green	Header Male Pins Shrouded (2 Side)	10	Polyamide (PA) Nylon	8.61 mm	0.339 "	630 V	Tin	300 V	Through Hole	Solder	3.5 mm	0.138 in	90° Right Angle
