PZC21DBBN

Obsolete

Sullins Connector Solutions

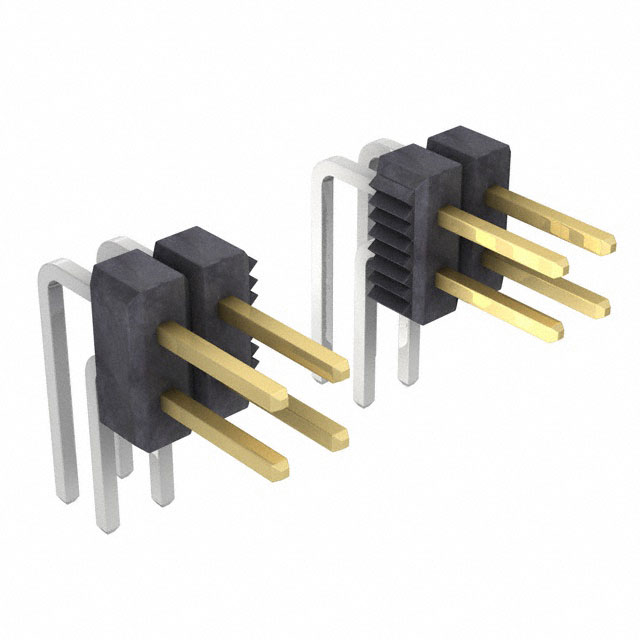

CONN HEADER R/A 42POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PZC21DBBN

Obsolete

Sullins Connector Solutions

CONN HEADER R/A 42POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZC21DBBN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.23 in
Contact Length - Post	5.84 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PZC21 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Connector Type	Current Rating (Amps)	Number of Rows	Number of Positions	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Material	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Color	Material Flammability Rating	Style	Contact Finish - Post	Termination	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating
Sullins Connector Solutions PZC21DFDN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	2	42	Square	10.67 mm	0.42 in	Unshrouded	0.318 "	8.08 mm	21.29 mm	0.838 in	Copper Alloy	Gold	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull	2.54 mm	0.1 in
Sullins Connector Solutions PZC21SAFN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	1	21	Square			Unshrouded	0.23 in		24.13 mm	0.95 in	Copper Alloy	Gold	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull			0.62 in	15.75 mm	5.84 mm
Sullins Connector Solutions PZC21DBBN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	2	42	Square			Unshrouded	0.23 in				Copper Alloy	Gold	Through Hole Right Angle	2.54 µm	100 µin	0.24 in	6.1 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull	2.54 mm	0.1 in	0.23 in	5.84 mm	5.84 mm
Sullins Connector Solutions PZC21DBAN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	2	42	Square	3.05 mm	0.12 in	Unshrouded	0.23 in				Copper Alloy	Gold	Through Hole Right Angle	2.54 µm	100 µin	0.24 in	6.1 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull	2.54 mm	0.1 in			5.84 mm
Sullins Connector Solutions PZC21SGAN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	1	21	Square	3.05 mm	0.12 in	Unshrouded	0.318 "	8.08 mm			Copper Alloy	Gold	Through Hole Right Angle	2.54 µm	100 µin	0.14 in	3.56 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull
Sullins Connector Solutions PZC21DFCN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	2	42	Square	8.13 mm	0.32 in	Unshrouded	0.318 "	8.08 mm	18.75 mm	0.738 "	Copper Alloy	Gold	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull	2.54 mm	0.1 in
Sullins Connector Solutions PZC21SBCN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	1	21	Square	8.13 mm	0.32 in	Unshrouded	0.23 in				Copper Alloy	Gold	Through Hole Right Angle	2.54 µm	100 µin	0.14 in	3.56 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull					5.84 mm
Sullins Connector Solutions PZC21DAHN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	2	42	Square	20.83 mm	0.82 in	Unshrouded	0.23 in		29.21 mm	1.15 in	Copper Alloy	Gold	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull	2.54 mm	0.1 in			5.84 mm
Sullins Connector Solutions PZC21SABN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	1	21	Square			Unshrouded	0.23 in		14.22 mm	0.56 in	Copper Alloy	Gold	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull			0.23 in	5.84 mm	5.84 mm
Sullins Connector Solutions PZC21DGAN	10 çin	0.25 çm	All	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	Header	3 A	2	42	Square	3.05 mm	0.12 in	Unshrouded	0.318 "	8.08 mm			Copper Alloy	Gold	Through Hole Right Angle	2.54 µm	100 µin	0.24 in	6.1 mm	Black	UL94 V-0	Board to Board Cable	Tin	Solder	Push-Pull	2.54 mm	0.1 in
