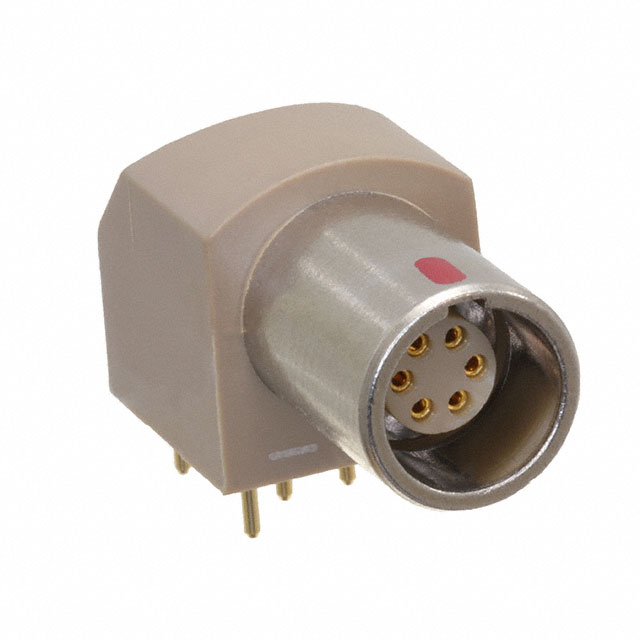

EPG.0B.306.HLN

Active

LEMO

CONN RCPT FMALE 6POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EPG.0B.306.HLN

Active

LEMO

CONN RCPT FMALE 6POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPG.0B.306.HLN

Color	Brown, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	306
Shielding	Shielded
Termination	Solder

EPG.0B Series

Part	Termination	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Primary Material	Insert Material	Shell Material	Current Rating (Amps)	Contact Finish - Mating	Features	Number of Positions	Contact Material	Color	Shell Size - Insert	Orientation	Shielding	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
LEMO EPG.0B.306.HLN	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	2.5 A	Gold	Ground	6	Bronze	Brown Silver	306	G	Shielded	Nickel	-55 °C	250 °C	IP50
LEMO EPG.0B.307.HLN	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	2 A	Gold	Ground	7	Bronze	Brown Silver	307	G	Shielded	Nickel	-55 °C	250 °C	IP50
LEMO EPG.0B.309.HLN	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	1.5 A	Gold	Ground	9	Bronze	Brown Silver	309	G	Shielded	Nickel	-55 °C	250 °C	IP50
LEMO EPG.0B.304.HLN	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	4.5 A	Gold	Ground	4	Bronze	Brown Silver	304	G	Shielded	Nickel	-55 °C	250 °C	IP50
LEMO EPG.0B.304.HLNS	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	4.5 A	Gold		4	Bronze	Brown Silver	304	G	Shielded	Nickel	-55 °C	250 °C	IP50
LEMO EPG.0B.307.HLNS	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	2 A	Gold		7	Bronze	Brown Silver	307	G	Shielded	Nickel	-55 °C	250 °C	IP50
LEMO EPG.0B.302.HLN	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	4.5 A	Gold	Ground	2	Bronze	Brown Silver	302	G	Shielded	Nickel	-55 °C	250 °C	IP50
LEMO EPG.0B.305.HLN	Solder	Push-Pull	UL94 V-0	59 Áin	1.5 Ám	Through Hole Right Angle	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	4.5 A	Gold	Ground		Bronze	Brown Silver	305	G	Shielded	Nickel	-55 °C	250 °C	IP50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.88
		10	$ 44.86
		25	$ 43.13
		50	$ 41.69
		100	$ 39.39
		250	$ 38.24

Description

General part information

EPG.0B Series

6 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources
