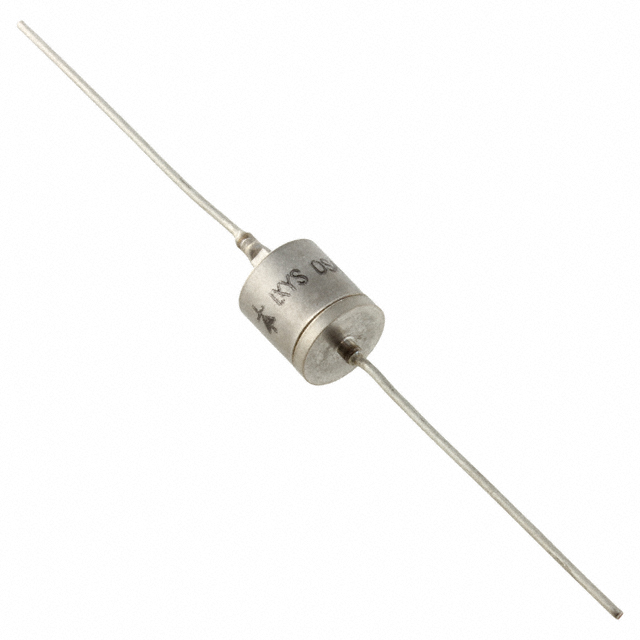

DSA2-12A

Obsolete

IXYS

DIODE AVALANCHE 1.2KV 3.6A AXIAL

Search across all available documentation for this part.

Obsolete

IXYS

DIODE AVALANCHE 1.2KV 3.6A AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	DSA2-12A

Current - Average Rectified (Io)	3.6 A
Current - Reverse Leakage @ Vr	2 mA
Mounting Type	Through Hole
Package / Case	Axial
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Axial
Technology	Avalanche
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.25 V

Part	Current - Average Rectified (Io)	Speed	Speed	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr
IXYS DSA2-12A	3.6 A	Standard Recovery >500ns	200 mA	Axial	1.2 kV	Axial	Through Hole	Avalanche	1.25 V	2 mA
IXYS DSA2-18A	3.6 A	Standard Recovery >500ns	200 mA	Axial	1800 V	Axial	Through Hole	Avalanche	1.25 V	2 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1200 V 3.6A Through Hole Axial
