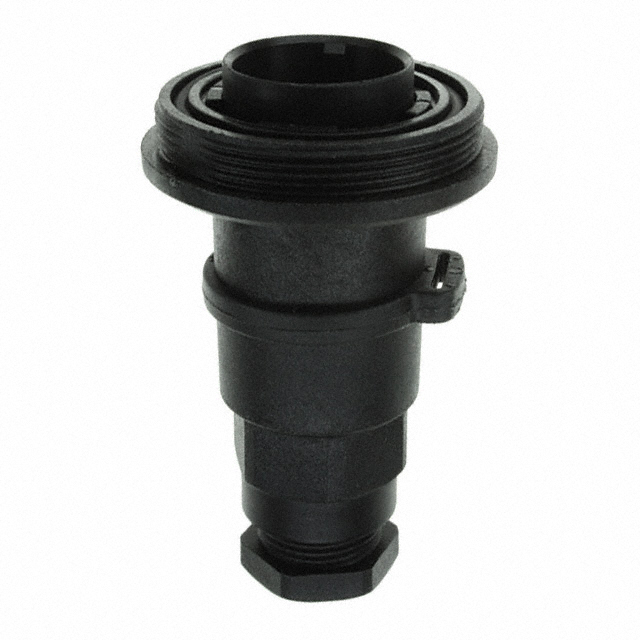

PX0821/P

Active

BULGIN LIMITED

CONN RCPT HSG MALE 25POS INLINE

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN RCPT HSG MALE 25POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	PX0821/P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Housing Color	Black
Includes	1 Backshell, 1 Nut, 1 Gland, 1 Cage Clamp, 1 O-Ring, 1 Connector, 1 Locking Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	25
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Type	For Male Pins

Part	Shielding	Contact Shape	Type	Connector Type	Contact Type	Shell Material	Note	Material Flammability Rating	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Insert Material	Ingress Protection	Number of Positions	Mounting Type	Includes
BULGIN LIMITED PX0821/P	Unshielded	Circular	For Male Pins	Receptacle Housing	Crimp and Solder Cup	Glass Filled Nylon Polyamide (PA)	Contacts Not Included	UL94 HB	Black	-20 C	70 °C	Keyed	Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	25	Free Hanging (In-Line)	1 Backshell 1 Cage Clamp 1 Connector 1 Gland 1 Locking Ring 1 Nut 1 O-Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line)
