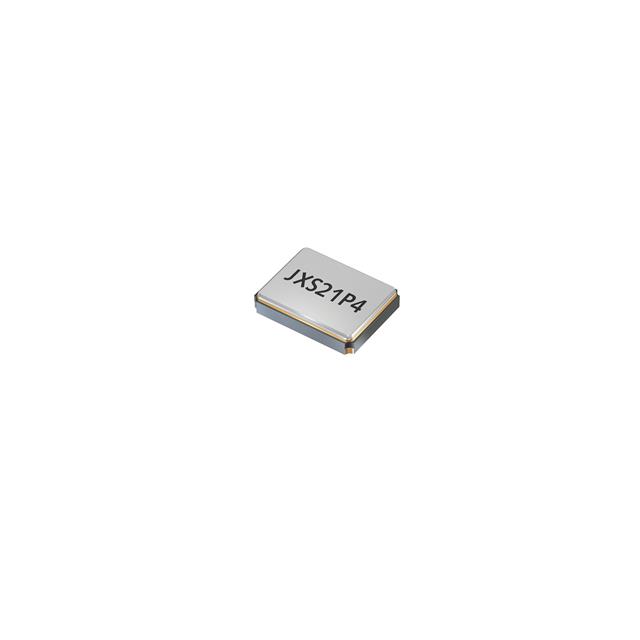

Q 48,0-JXS21P4-12-20/20-T1-FU-AEC-LF

Active

Jauch Quartz

CRYSTAL 48MHZ 12PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q 48,0-JXS21P4-12-20/20-T1-FU-AEC-LF

ESR (Equivalent Series Resistance)	50 Ohms
Frequency	48 MHz
Frequency Stability	20 ppm
Frequency Tolerance	20 ppm
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Load Capacitance	12 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SMD, No Lead
Ratings	AEC-Q200
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Type	MHz Crystal

JXS21P4 Series

Part	Type	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance	Operating Mode	Frequency Stability	Frequency	Frequency Tolerance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type
Jauch Quartz Q 48,0-JXS21P4-12-20/20-T1-FU-AEC-LF	MHz Crystal	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD No Lead	85 °C	-40 °C	12 pF	Fundamental	20 ppm	48 MHz	20 ppm	50 Ohms	0.6 mm	0.024 in	Surface Mount
Jauch Quartz Q 16,0-JXS21P4-12-20/20-T1-AEC-LF	MHz Crystal	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD No Lead	85 °C	-40 °C	12 pF	Fundamental	20 ppm	16 MHz	20 ppm		0.6 mm	0.024 in	Surface Mount
Jauch Quartz Q 25,0-JXS21P4-12-20/20-T1-FU-AEC-LF	MHz Crystal	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD No Lead	85 °C	-40 °C	12 pF	Fundamental	20 ppm	25 MHz	20 ppm	80 Ohm	0.6 mm	0.024 in	Surface Mount
Jauch Quartz Q 26,0-JXS21P4-12-20/20-T1-FU-AEC-LF	MHz Crystal	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD No Lead	85 °C	-40 °C	12 pF	Fundamental	20 ppm	26 MHz	20 ppm	80 Ohm	0.6 mm	0.024 in	Surface Mount
Jauch Quartz Q 24,0-JXS21P4-12-20/20-T1-FU-AEC-LF	MHz Crystal	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD No Lead	85 °C	-40 °C	12 pF	Fundamental	20 ppm	24 MHz	20 ppm	80 Ohm	0.6 mm	0.024 in	Surface Mount
Jauch Quartz Q 25,0-JXS21P4-8-20/20-T1-FU-AEC-LF	MHz Crystal	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD No Lead	85 °C	-40 °C	8 pF	Fundamental	20 ppm	25 MHz	20 ppm	80 Ohm	0.6 mm	0.024 in	Surface Mount
Jauch Quartz Q 30,0-JXS21P4-12-20/20-T1-FU-AEC-LF	MHz Crystal	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD No Lead	85 °C	-40 °C	12 pF	Fundamental	20 ppm	30 MHz	20 ppm	50 Ohms	0.6 mm	0.024 in	Surface Mount
