22-H200C-C

Obsolete

Qualtek

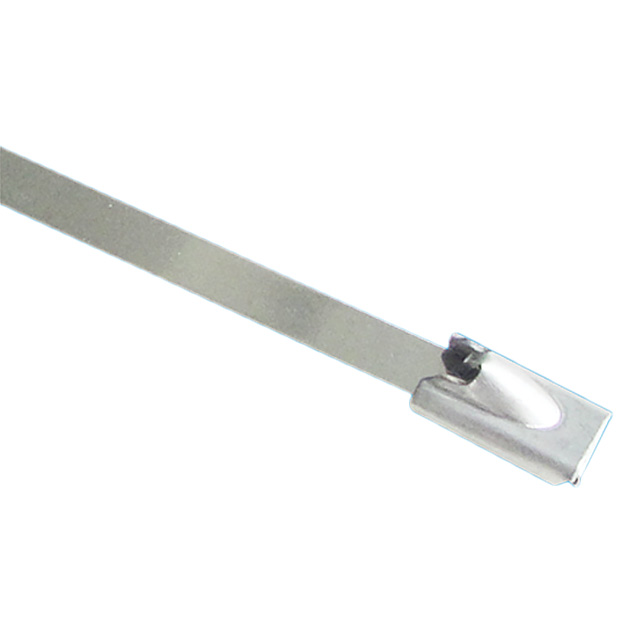

CBL TIE LOCKING SILV 350LB 7.87"

Search across all available documentation for this part.

Obsolete

Qualtek

CBL TIE LOCKING SILV 350LB 7.87"

Technical Specifications

Parameters and characteristics for this part

Specification	22-H200C-C

Bundle Diameter [diameter]	61.9 mm
Bundle Diameter [diameter]	2.44 in
Color	Silver
Length - Actual	200 mm
Length - Actual	0.656 ft
Length - Actual	7.87 "
Length - Approximate	7.75 in
Material	Stainless Steel 304, Epoxy Coated
Mounting Type	Free Hanging (In-Line)
Tensile Strength	158.76 kg
Tensile Strength	350 lbs
Width [x]	0.311 "
Width [x]	7.9 mm
Wire/Cable Tie Type	Standard, Locking

Part	Material	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [x]	Width [x]	Length - Actual	Length - Actual	Length - Actual	Length - Approximate	Wire/Cable Tie Type	Tensile Strength	Tensile Strength	Mounting Type
Qualtek 22-H200C-C	Stainless Steel 304 Epoxy Coated	Silver	61.9 mm	2.44 in	0.311 "	7.9 mm	200 mm	0.656 ft	7.87 "	7.75 in	Locking Standard	158.76 kg	350 lbs	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Standard, Locking Silver 2.44" (61.90mm) 0.311" (7.90mm) 350 lbs (158.76 kg)
