PE91522

Active

Pasternack

2.92MM PLUG-3.5MM PLUG MITER RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PE91522

Active

Pasternack

2.92MM PLUG-3.5MM PLUG MITER RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PE91522

Adapter Series [Max]	3.5 mm
Adapter Series [Min]	2.92 mm
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	2.92 mm
Dielectric Material	Polyphenylene Ether, Modified (mPPE)
Frequency - Max [Max]	34.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

PE915 Series

Part	Center Gender	Convert From (Adapter End)	Conversion Type	Frequency - Max [Max]	Adapter Series [Max]	Adapter Series [Min]	Style	Center Contact Plating	Impedance	Body Material	Adapter Type	Mounting Type	Center Contact Material	Dielectric Material	Convert From (Adapter End)	Mounting Feature	Convert To (Adapter End)	Convert To (Adapter End)	Adapter Series
Pasternack PE91522	Male to Male	2.92 mm	Between Series	34.5 GHz	3.5 mm	2.92 mm	Right Angle	Gold	50 Ohms	Stainless Steel	Plug to Plug	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polyphenylene Ether Modified (mPPE)
Pasternack PE91538	Female to Female	2.92 mm	Same Series	40 GHz	2.92 mm	2.92 mm	Straight	Gold	50 Ohms	Stainless Steel	Jack to Jack		Beryllium Copper	Polytetrafluoroethylene (PTFE)	Jack Female Socket OS-2.9	Flange	2.92 mm	OS-2.9 Jack Female Socket
Pasternack PE91546	Female to Non-Gendered		Between Series	18 GHz	7 mm	3.5 mm	Straight	Gold	50 Ohms	Stainless Steel		Free Hanging (In-Line)	Beryllium Copper	Polyphenylene Ether Modified (mPPE)	3.5mm Jack Female Socket
Pasternack PE91520		2.92 mm	Between Series	34.5 GHz	3.5 mm	2.92 mm	Right Angle	Gold	50 Ohms	Stainless Steel	Plug to Jack	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polyphenylene Ether Modified (mPPE)	Jack Female Socket OS-2.9
Pasternack PE91514		2.92 mm	Between Series	34.5 GHz	3.5 mm	2.92 mm	Right Angle	Gold	50 Ohms	Stainless Steel	Plug to Jack	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polyphenylene Ether Modified (mPPE)				3.5mm Jack Female Socket
Pasternack PE91502		2.4 mm	Between Series	40 GHz	2.92 mm	2.4 mm	Right Angle	Gold	50 Ohms	Stainless Steel	Plug to Jack	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polyphenylene Ether Modified (mPPE)			2.92 mm	OS-2.9 Jack Female Socket
Pasternack PE91523			Same Series	34.5 GHz	3.5 mm	3.5 mm	Right Angle	Gold	50 Ohms	Stainless Steel	Plug to Jack	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polyphenylene Ether Modified (mPPE)	3.5mm Plug Male Pin			3.5mm Jack Female Socket
Pasternack PE91549	Female to Female		Same Series	27 GHz			Straight		50 Ohms		Jack to Jack	Free Hanging (In-Line)			Female Socket SMA Jack			Female Socket SMA Jack	SMA to SMA
Pasternack PE91525	Female to Female	2.4 mm	Between Series	40 GHz	2.92 mm	2.4 mm	Right Angle	Gold	50 Ohms	Stainless Steel	Jack to Jack	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polyphenylene Ether Modified (mPPE)			2.92 mm	OS-2.9 Jack Female Socket
Pasternack PE91518	Male to Male	1.85 mm	Between Series	50 GHz			Right Angle	Gold	50 Ohms	Stainless Steel	Plug to Plug	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polyphenylene Ether Modified (mPPE)	Plug Male Pin			2.4mm (APC-2.4 OS-50) Plug Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 83.95
		10	$ 80.59
		25	$ 77.23
		100	$ 73.88

Description

General part information

PE915 Series

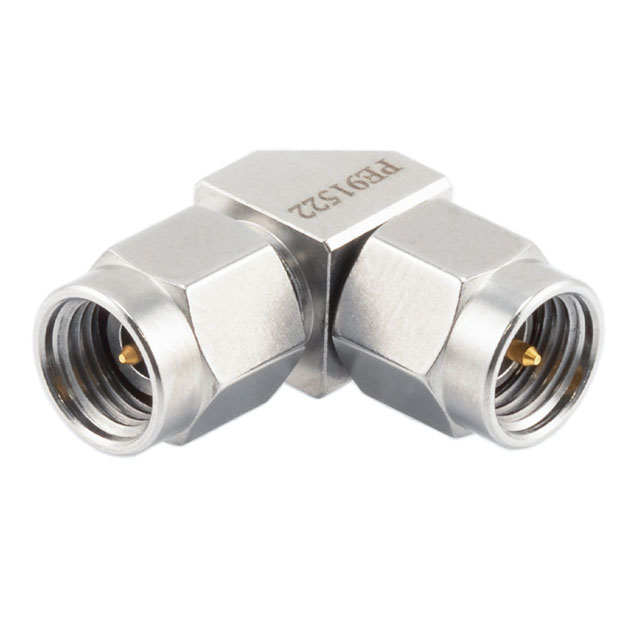

Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 3.5mm Plug, Male Pin 50 Ohms
