Conta-Clip, Inc.

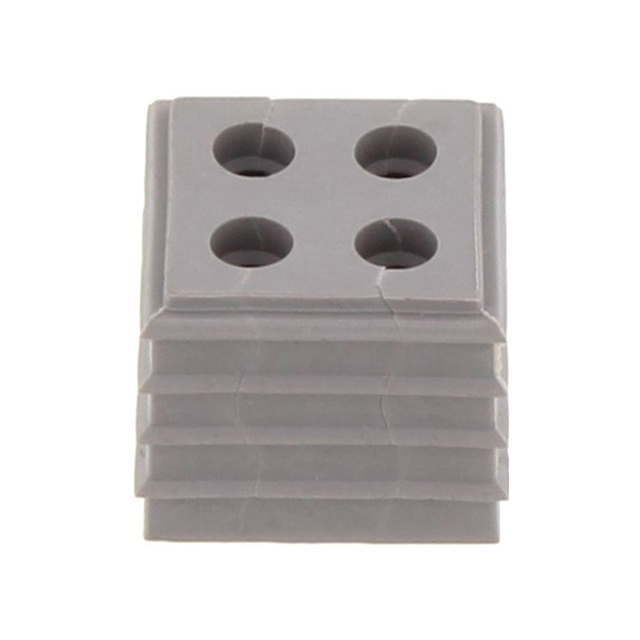

KDS SEALING SLEEVE MULTI 5MM

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

KDS SEALING SLEEVE MULTI 5MM

Technical Specifications

Parameters and characteristics for this part

Specification	28673.6

Bushing, Grommet Type	Frame Grommet, Split
Color	Gray
Diameter - Inside [Max] [diameter]	0.201 in
Diameter - Inside [Max] [diameter]	5.1 mm
Diameter - Inside [Min] [diameter]	4.7 mm
Diameter - Inside [Min] [diameter]	0.185 in
Features	IP66 - Dust Tight, Water Resistant
For Use With/Related Products	4 Cable Openings
Material	Thermoplastic Elastomer (TPE)
Material Flammability Rating	UL94 V-0
Panel Cutout Dimensions [x]	20.3 mm
Panel Cutout Dimensions [x]	0.799 in

Part	For Use With/Related Products	Features	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Bushing, Grommet Type	Material Flammability Rating	Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Material
Conta-Clip, Inc. 28673.6	4 Cable Openings	IP66 - Dust Tight Water Resistant	0.201 in	4.7 mm	0.185 in	5.1 mm	Frame Grommet Split	UL94 V-0	Gray	20.3 mm	0.799 in	Thermoplastic Elastomer (TPE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Square - 0.799" (20.30mm) Frame Grommet, Split 0.185" ~ 0.201" (4.70mm ~ 5.10mm) Gray
