1072F12-05-2-1-RA-00200

Active

CnC Tech, LLC

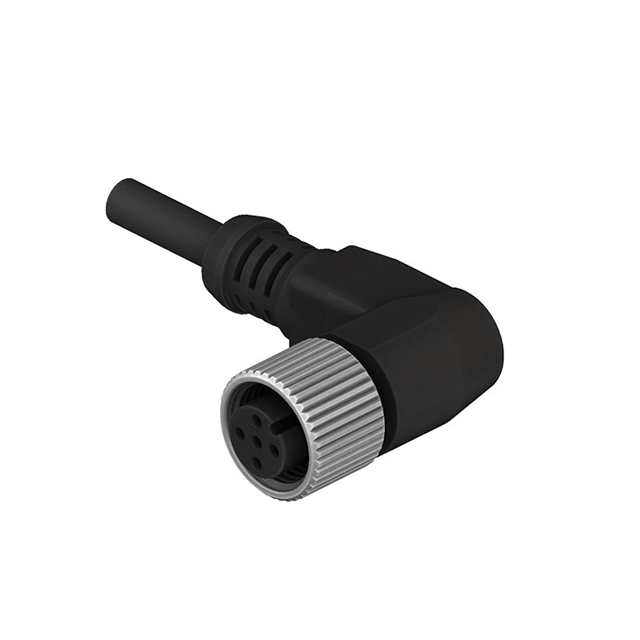

CBL CIRC 5POS FEM TO WIRE 6.56'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1072F12-05-2-1-RA-00200

Active

CnC Tech, LLC

CBL CIRC 5POS FEM TO WIRE 6.56'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1072F12-05-2-1-RA-00200

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

1072F12 Series

Part	Cable Type	Length [x]	Length [x]	1st Connector Shell Size - Insert	2nd Connector Type	1st Connector Number of Positions	Usage	1st Connector Number of Positions Loaded	Ingress Protection	Shielding	Cable Material	Assembly Configuration	1st Connector Orientation	1st Connector Mounting Type	1st Connector Type	Color	1st Connector Gender	1st Connector Number of Positions [custom]	Length	Length
CnC Tech, LLC 1072F12-03-2-1-S-00050	Round	1.64 ft	500 mm	M12	Wire Leads	3	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	A	Free Hanging (In-Line)	Plug	Black	Female Sockets
CnC Tech, LLC 1072F12-12-2-1-RA-00050	Round	1.64 ft	500 mm	M12	Wire Leads		Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	A	Free Hanging (In-Line)	Plug Right Angle	Black	Female Sockets	12
CnC Tech, LLC 1072F12-05-2-1-RA-00100	Round	3.28 ft	1 m	M12	Wire Leads	5	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	A	Free Hanging (In-Line)	Plug Right Angle	Black	Female Sockets
CnC Tech, LLC 1072F12-05-2-1-S-00050	Round	1.64 ft	500 mm	M12	Wire Leads	5	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	A	Free Hanging (In-Line)	Plug	Black	Female Sockets
CnC Tech, LLC 1072F12-05-2-1-RA-00200	Round	6.56 ft	2 m	M12	Wire Leads	5	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	A	Free Hanging (In-Line)	Plug Right Angle	Black	Female Sockets
CnC Tech, LLC 1072F12-05-2-1-S-00100	Round	3.28 ft	1 m	M12	Wire Leads	5	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	A	Free Hanging (In-Line)	Plug	Black	Female Sockets
CnC Tech, LLC 1072F12-05-2-4-S-00100	Round	3.28 ft	1 m	M12	Wire Leads	5	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	D	Free Hanging (In-Line)	Plug	Black	Female Sockets
CnC Tech, LLC 1072F12-03-2-4-RA-00150	Round			M12	Wire Leads	3	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	D	Free Hanging (In-Line)	Plug Right Angle	Black	Female Sockets		4.92 '	1.5 m
CnC Tech, LLC 1072F12-05-2-1-RA-00150	Round			M12	Wire Leads	5	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	A	Free Hanging (In-Line)	Plug Right Angle	Black	Female Sockets		4.92 '	1.5 m
CnC Tech, LLC 1072F12-03-2-4-S-00150	Round			M12	Wire Leads	3	Industrial Environments	All	IP67 - Dust Tight Waterproof	Unshielded	Polyvinyl Chloride (PVC)	Standard	D	Free Hanging (In-Line)	Plug	Black	Female Sockets		4.92 '	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.18
		10	$ 13.45
		25	$ 12.93
		50	$ 12.42
		100	$ 11.73
		250	$ 10.69
		500	$ 10.00
		1000	$ 9.17

Description

General part information

1072F12 Series

Circular Cable Assembly Unshielded 6.56' (2.00m)
