3550120RFT

Active

TE Connectivity Passive Product

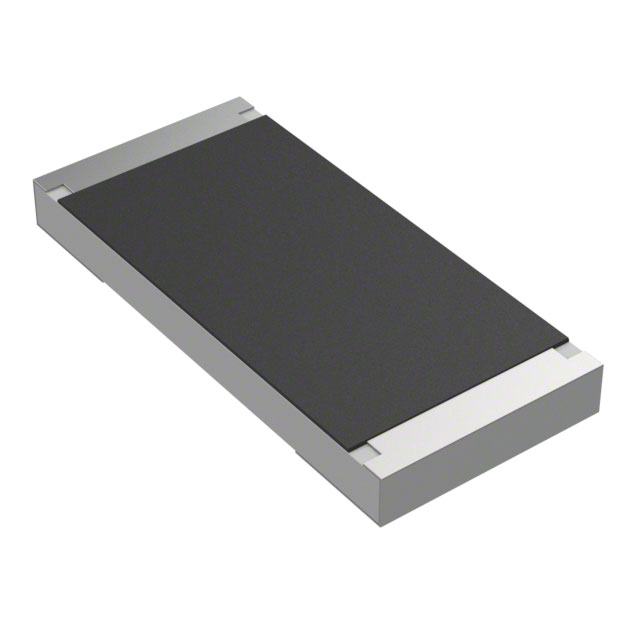

RES 3550 120R 1%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3550120RFT

Active

TE Connectivity Passive Product

RES 3550 120R 1%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3550120RFT

Composition	Thick Film
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Power (Watts)	5 W
Resistance	120 Ohms
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

3550 Series

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Composition	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations	Tolerance	Temperature Coefficient
TE Connectivity Passive Product 355012RFT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	12 Ohms	1.2 mm	0.047 in	2	1 %	100 ppm/°C
TE Connectivity Passive Product 355062RFT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	62 Ohms	1.2 mm	0.047 in	2	1 %	100 ppm/°C
TE Connectivity Passive Product 3550120RFT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	120 Ohms	1.2 mm	0.047 in	2	1 %	100 ppm/°C
TE Connectivity Passive Product 3550560KJT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	560 kOhms	1.2 mm	0.047 in	2	5 %	100 ppm/°C
TE Connectivity Passive Product 355056KJT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	56 kOhms	1.2 mm	0.047 in	2	5 %	100 ppm/°C
TE Connectivity Passive Product 35502R0FT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	2 Ohms	1.2 mm	0.047 in	2	1 %	200 ppm/°C
TE Connectivity Passive Product 3550820RFT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	820 Ohms	1.2 mm	0.047 in	2	1 %	100 ppm/°C
TE Connectivity Passive Product 35501R8FT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	1.8 Ohms	1.2 mm	0.047 in	2	1 %	200 ppm/°C
TE Connectivity Passive Product 3550910RFT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	910 Ohms	1.2 mm	0.047 in	2	1 %	100 ppm/°C
TE Connectivity Passive Product 3550330KFT	5 W	155 °C	-55 °C	Nonstandard	11 mm	0.433 in	0.197 "	5 mm	Thick Film	330 kOhms	1.2 mm	0.047 in	2	1 %	100 ppm/°C
