LZ1-00G102-0000

Obsolete

ams-OSRAM USA INC.

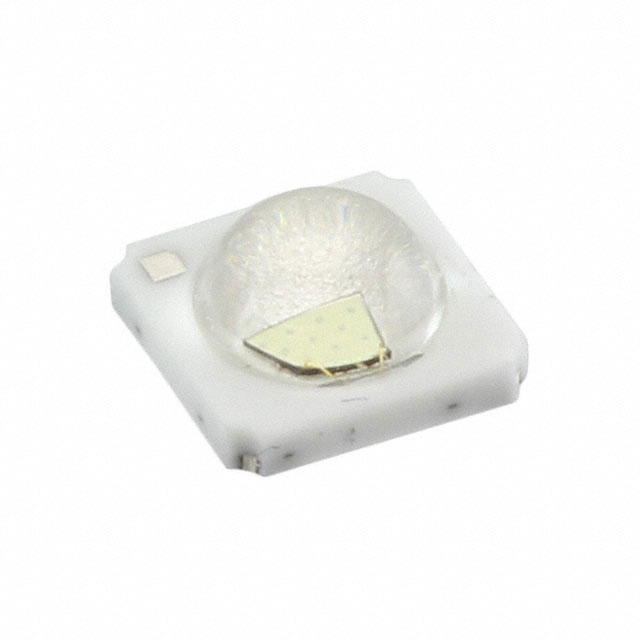

LED LZ1 GREEN 528NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

LZ1-00G102-0000

Obsolete

ams-OSRAM USA INC.

LED LZ1 GREEN 528NM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZ1-00G102-0000

Color	Green
Current - Max [Max]	1.5 A
Current - Test	1 A
Height - Seated (Max) [Max] [z]	0.102 "
Height - Seated (Max) [Max] [z]	2.6 mm
Lumens/Watt @ Current - Test	57 lm/W
Luminous Flux @ Current/Temperature	215 lm
Luminous Flux @ Current/Temperature [Max]	285 lm
Luminous Flux @ Current/Temperature [Min]	145 lm
Mounting Type	Surface Mount
Package / Case	4540 Metric
Package / Case	1816
Size / Dimension [x]	0.173 in
Size / Dimension [x]	4.4 mm
Size / Dimension [y]	0.173 "
Size / Dimension [y]	4.4 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	6 °C/W
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	3.6 V
Wavelength	528 nm
Wavelength [Max]	535 nm
Wavelength [Min]	520 nm

LZ1-00 Series

Part	Mounting Type	Color	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Wavelength	Wavelength [Min]	Wavelength [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Current - Test	Thermal Resistance of Package [custom]	Viewing Angle	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Operating Temperature	Viewing Angle [custom]	Current - DC Forward (If) (Max)	Orientation	Type	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]	CCT (K)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]
ams-OSRAM USA INC. LZ1-00G102-0000	Surface Mount	Green	SMD	0.102 "	2.6 mm	1.5 A	528 nm	520 nm	535 nm	215 lm	145 lm	285 lm	0.173 in	0.173 "	4.4 mm	4.4 mm	3.6 V	1 A	6 °C/W	100 °	57 lm/W	4540 Metric	1816
ams-OSRAM USA INC. LZ1-00R202-0000	Surface Mount	Red	SMD	0.102 "	2.6 mm	1.2 A	660 nm	655 nm	670 nm	1025 mW			0.173 in	0.173 "	4.4 mm	4.4 mm	2.5 V	1 A	6 °C/W	100 °		4540 Metric	1816
ams-OSRAM USA INC. LZ1-00R102-0000	Surface Mount	Red	SMD	0.102 "	2.6 mm	1.2 A	624 nm	618 nm	630 nm	173 lm	117 lm	228 lm	0.173 in	0.173 "	4.4 mm	4.4 mm	2.7 V	1 A	6 °C/W	100 °	64 lm/W	4540 Metric	1816
ams-OSRAM USA INC. LZ1-00R802-0000	Surface Mount						1050 nm										1.6 V						4-SMD No Lead Exposed Pad	115 °C	90 °	1 A	Top View	Infrared (IR)
ams-OSRAM USA INC. LZ1-00DB00-0100	Surface Mount						460 nm										3.6 V			80 °			4-SMD No Lead Exposed Pad	150 °C		1 A	Top View
ams-OSRAM USA INC. LZ1-00R702-0000	Surface Mount						940 nm										3 V						4-SMD No Lead Exposed Pad	145 °C	90 °		Top View	Infrared (IR)	1.2 A
ams-OSRAM USA INC. LZ1-00R402-0000	Surface Mount						850 nm										1.8 V			100 °			4-SMD No Lead Exposed Pad	125 ¯C			Top View	Infrared (IR)	1.2 A	640 mW/sr
ams-OSRAM USA INC. LZ1-00CW02-0055	Surface Mount	Cool White	4040	0.102 "	2.6 mm	1.2 A							0.173 in	0.173 "	4.4 mm	4.4 mm	3.2 V	1 A		95 °	64 lm/W		4-SMD No Lead Exposed Pad								5500 K	228 lm	205 lm	182 lm
ams-OSRAM USA INC. LZ1-00R302-0000	Surface Mount	Red	SMD	0.102 "	2.6 mm	1.2 A	734 nm	723 nm	745 nm	656 mW	512 mW	800 mW	0.173 in	0.173 "	4.4 mm	4.4 mm	2.2 V	1 A	6 °C/W	100 °		4540 Metric	1816
