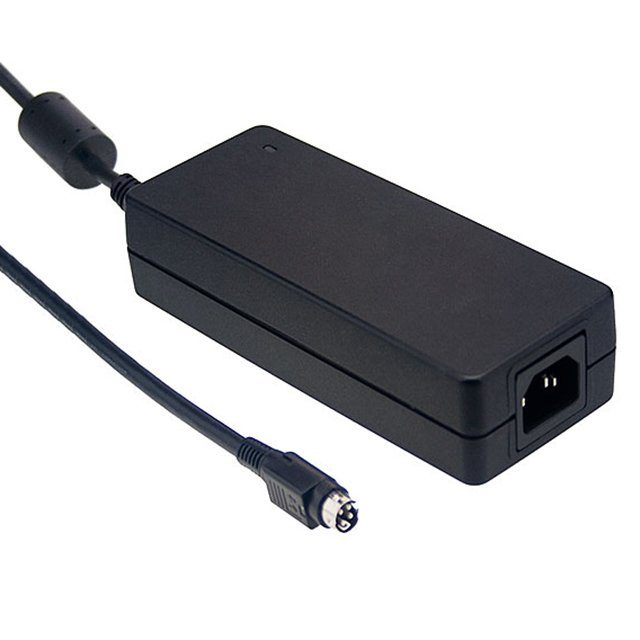

GST120A20-R7B

Active

MEAN WELL USA Inc.

AC/DC DESKTOP ADAPTER 20V 120W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DESKTOP ADAPTER 20V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	GST120A20-R7B

Applications	ITE (Commercial)
Approval Agency	CE, GS, CCC, cULus, EAC, SIRIM, BIS, CB, BSMI, RCM, KC, PSE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	6 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	120 W
Region Utilized	International
Size / Dimension [x]	6.57 "
Size / Dimension [x]	167 mm
Size / Dimension [y]	67 mm
Size / Dimension [y]	2.64 "
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Voltage - Output	20 V

Part	Form	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Cord Length	Cord Length	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Power (Watts)	Approval Agency	Output Connector	Output Connector	Applications	Voltage - Output	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Input Connector
MEAN WELL USA Inc. GST120A20-R7B	Desktop (Class I)	70 °C	-30 ░C	Cord	1.2 m	47.2 in	6 A	150 mW	120 W	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	4 Pin	Power DIN	ITE (Commercial)	20 V	Level VI	6.57 "	1.38 in	35 mm	67 mm	2.64 "	167 mm	International	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
