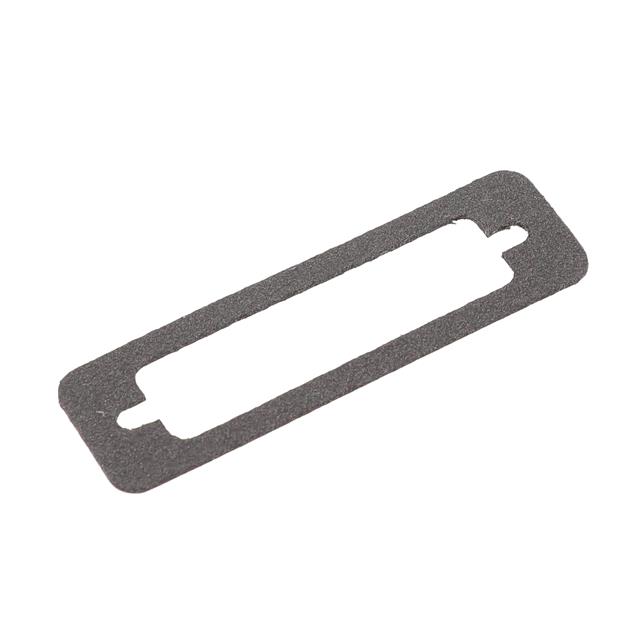

95-22003

Active

TE Kemtron

RFI GASKET SIL

Search across all available documentation for this part.

Active

TE Kemtron

RFI GASKET SIL

Technical Specifications

Parameters and characteristics for this part

Part	Material	Shape	Height [z]	Height [z]	Type	Width [x]	Width [x]	Length [x]	Length [x]	Length	Length	Width [y]	Width [y]
TE Kemtron 95-22029	Aluminum Silicone Silver	Rectangle	0.063 in	1.6 mm	Gasket	17.5 mm	0.689 in	2.929 in	74.4 mm
TE Kemtron 95-22003	Silicone Nickel Graphite	Rectangle	0.031 "	0.8 mm	Gasket	17.5 mm	0.689 in			57.91 mm	2.28 "
TE Kemtron 95-22030	Aluminum Silicone Silver	Rectangle	0.063 in	1.6 mm	Gasket					72.1 mm	2.839 in	20.3 mm	0.799 in
TE Kemtron 95-22037	Fluorosilicone Silver Aluminum	Rectangle	0.063 in	1.6 mm	Gasket	17.5 mm	0.689 in			44.2 mm	1.74 in
TE Kemtron 95-22036	Fluorosilicone Silver Aluminum	Rectangle	0.063 in	1.6 mm	Gasket	17.5 mm	0.689 in	1.409 in	35.8 mm
TE Kemtron 95-22007	Silicone Nickel Graphite	Rectangle	0.063 in	1.6 mm	Gasket	17.5 mm	0.689 in			44.2 mm	1.74 in
TE Kemtron 95-22039	Fluorosilicone Silver Aluminum	Rectangle	0.063 in	1.6 mm	Gasket	17.5 mm	0.689 in	2.929 in	74.4 mm
TE Kemtron 95-22019	Fluorosilicone Nickel Graphite	Rectangle	0.063 in	1.6 mm	Gasket	17.5 mm	0.689 in	2.929 in	74.4 mm
TE Kemtron 95-22025	Aluminum Silicone Silver	Rectangle	0.031 "	0.8 mm	Gasket					72.1 mm	2.839 in	20.3 mm	0.799 in
TE Kemtron 95-22001	Silicone Nickel Graphite	Rectangle	0.031 "	0.8 mm	Gasket	17.5 mm	0.689 in	1.409 in	35.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFI GASKET SIL

Technical documentation and resources
