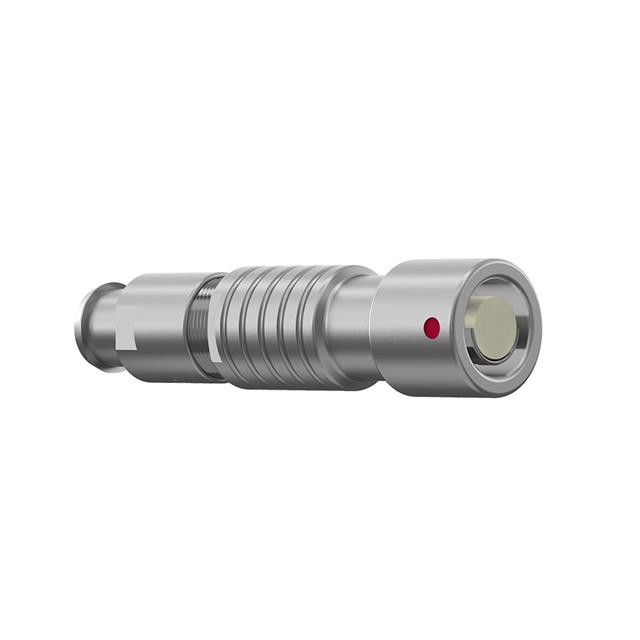

K40F1C-P02LJG0-350S
ActiveODU
ODU MINI-SNAP INLINE RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K40F1C-P02LJG0-350S
ActiveODU
ODU MINI-SNAP INLINE RECEPTACLE,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K40F1C-P02LJG0-350S |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Cable Opening [Max] [diameter] | 0.138 in |
| Cable Opening [Max] [diameter] | 3.5 mm |
| Cable Opening [Min] [diameter] | 3 mm |
| Cable Opening [Min] [diameter] | 0.118 in |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 1 |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
| Shielding | Unshielded |
| Voltage Rating | 500 V |
K40F1C-P Series
| Part | Primary Material | Applications | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Contact Material | Contact Finish - Mating | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shell Size - Insert | Mounting Type | Number of Positions | Backshell Material, Plating | Connector Type | Features | Fastening Type | Shell Finish | Shell Material | Orientation | Material Flammability Rating | Color | Ingress Protection | Shielding | Voltage Rating | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Industrial Medical Military Testing Equipment & Measurement | 0.197 in | 0.177 in | 5 mm | 4.5 mm | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 4 A | 0 | Free Hanging (In-Line) | 7 | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | |||||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | 0.118 in | 0.098 in | 3 mm | 2.5 mm | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 7.5 A | 0 | Free Hanging (In-Line) | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 400 V | ||||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | 0.138 in | 0.118 in | 3 mm | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 7.5 A | 0 | Free Hanging (In-Line) | 2 | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 500 V | 3.5 mm | |||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | 0.138 in | 0.118 in | 3 mm | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 4 A | 0 | Free Hanging (In-Line) | 7 | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 300 VDC | 3.5 mm | |||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 7.5 A | 0 | Free Hanging (In-Line) | 4 | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 300 VDC | 0.039 in 0.059 in | 1 mm 1.5 mm | |||||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 7.5 A | 0 | Free Hanging (In-Line) | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 200 V | 4.5 mm | 0.157 in | 0.177 in | 4 mm | ||||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | 0.197 in | 0.177 in | 5 mm | 4.5 mm | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 7.5 A | 0 | Free Hanging (In-Line) | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | ||||||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | 0.118 in | 0.098 in | 3 mm | 2.5 mm | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 7.5 A | 0 | Free Hanging (In-Line) | 4 | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 300 VDC | |||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 7.5 A | 0 | Free Hanging (In-Line) | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 200 V | 0.079 in | 0.098 in | 2 mm | 2.5 mm | ||||||||||
Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Gold | Polyetheretherketone (PEEK) | -40 °C | 120 °C | 4 A | 0 | Free Hanging (In-Line) | 7 | Brass Chrome over Nickel | Receptacle Female Sockets | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Brass | 1 | UL94 V-0 | Silver | IP68 - Dust Tight Waterproof | Unshielded | 300 VDC | 2 mm | 0.059 in | 0.079 in | 1.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.29 | |
Description
General part information
K40F1C-P Series
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
