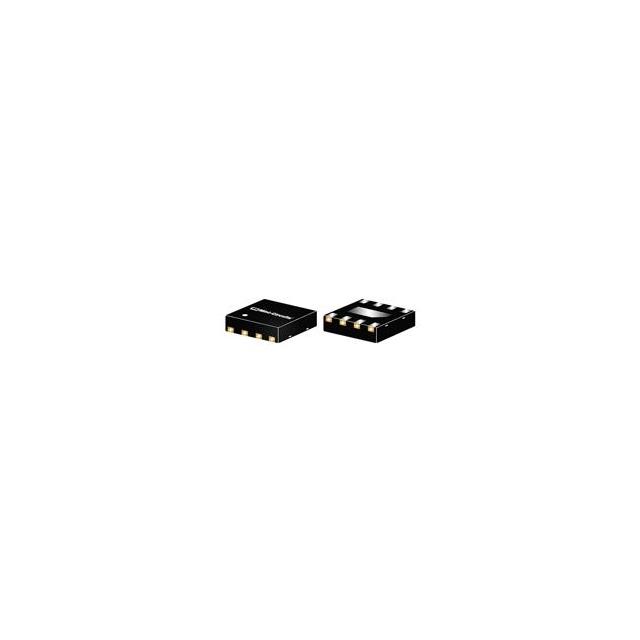

TAV2-501+
ActiveMINI-CIRCUITS
RF MOSFET E-PHEMT 4.5V MC1631-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TAV2-501+
ActiveMINI-CIRCUITS
RF MOSFET E-PHEMT 4.5V MC1631-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAV2-501+ |
|---|---|
| Current - Test | 280 mA |
| Frequency [Max] | 3.9 GHz |
| Frequency [Min] | 400 MHz |
| Mounting Type | Surface Mount |
| Noise Figure | 1.3 dB |
| Package / Case | 8-TFDFN Exposed Pad |
| Supplier Device Package | MC1631-1 |
| Technology | E-pHEMT |
| Voltage - Rated | 7 VDC |
| Voltage - Test | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.20 | |
| 10 | $ 2.09 | |||
| 20 | $ 1.99 | |||
| 100 | $ 1.94 | |||
| 500 | $ 1.91 | |||
| 1000 | $ 1.63 | |||
| Digi-Reel® | 1 | $ 2.20 | ||
| 10 | $ 2.09 | |||
| 20 | $ 1.99 | |||
| 100 | $ 1.94 | |||
| 500 | $ 1.91 | |||
| 1000 | $ 1.63 | |||
| Tape & Reel (TR) | 2000 | $ 1.61 | ||
| 4000 | $ 1.60 | |||
| 6000 | $ 1.57 | |||
Description
General part information
TAV2 Series
RF Mosfet 4.5 V 280 mA 400MHz ~ 3.9GHz 23.5dB MC1631-1
