STN061050BL15

Active

Eaton - Electronics Division

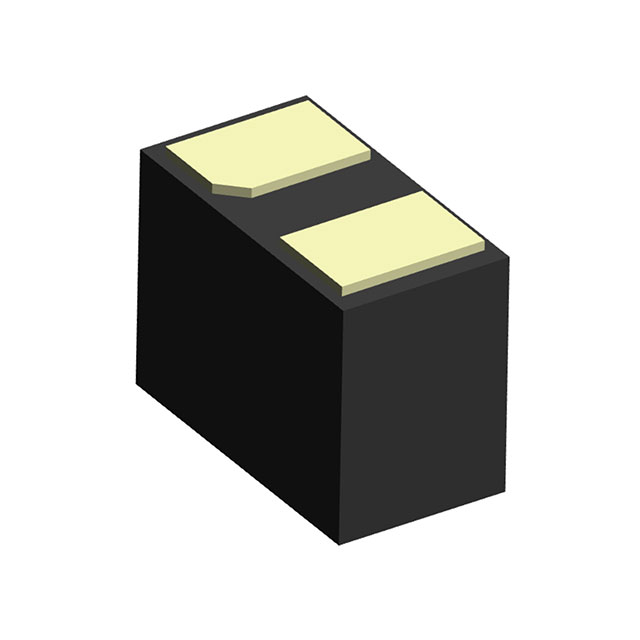

TVS DIODE 5VWM 17VC DFN0603-2L

Search across all available documentation for this part.

Active

Eaton - Electronics Division

TVS DIODE 5VWM 17VC DFN0603-2L

Technical Specifications

Parameters and characteristics for this part

Specification	STN061050BL15

Applications	Telecom
Bidirectional Channels [custom]	1
Capacitance @ Frequency	0.15 pF
Current - Peak Pulse (10/1000µs)	4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	0603 Metric
Package / Case	0201
Power - Peak Pulse	4 W
Power Line Protection	False
Supplier Device Package	DFN0603-2L
Type	Zener
Voltage - Breakdown (Min) [Min]	5.5 V
Voltage - Clamping (Max) @ Ipp [Max]	17 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Clamping (Max) @ Ipp	Supplier Device Package	Type	Applications	Package / Case	Package / Case	Bidirectional Channels [custom]	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]
Eaton - Electronics Division STN061050B300	12 V	DFN0603-2L	Zener	DVI USB	0603 Metric	0201	1	3 pF	7 A	5 V	Surface Mount	125 ¯C	-55 °C	41 W	5.3 V
Eaton - Electronics Division STN061050BL15		DFN0603-2L	Zener	Telecom	0603 Metric	0201	1	0.15 pF	4 A	5 V	Surface Mount	125 ¯C	-40 °C	4 W	5.5 V	17 V
Eaton - Electronics Division STN061050BL40	23 V	DFN0603-2L	Zener	Telecom	0603 Metric	0201	1	0.4 pF	5 A	5 V	Surface Mount	125 ¯C	-55 °C	100 W	6 V
Eaton - Electronics Division STN061050B101		DFN0603-2L	Zener	Telecom	0603 Metric	0201	1	10 pF	5 A	5 V	Surface Mount	125 ¯C	-55 °C	80 W	5.5 V	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN0603-2L
