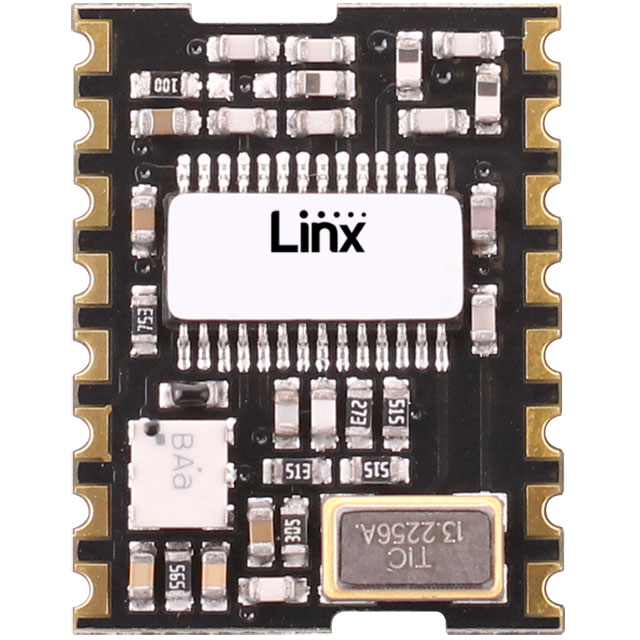

RXM-315-LR

Active

TE Connectivity Linx

RF RECEIVER ASK/OOK 315MHZ

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF RECEIVER ASK/OOK 315MHZ

Technical Specifications

Parameters and characteristics for this part

Specification	RXM-315-LR

Antenna Connector	Castellation
Applications	Remote Control, Lighting, Home/Industrial Automation, Security, RKE
Current - Receiving	5.2 mA
Data Interface	Serial
Data Rate (Max) [Max]	10 kbps
Features	Long Range
Frequency	315 MHz
Modulation or Protocol	ASK, OOK
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SMD Module
Sensitivity	-112 dBm
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

Part	Features	Mounting Type	Data Interface	Current - Receiving	Frequency	Data Rate (Max) [Max]	Modulation or Protocol	Sensitivity	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Antenna Connector
TE Connectivity Linx RXM-315-LR	Long Range	Surface Mount	Serial	5.2 mA	315 MHz	10 kbps	ASK OOK	-112 dBm	2.1 V	3.6 V	Home/Industrial Automation Lighting Remote Control RKE Security	-40 °C	70 °C	16-SMD Module	Castellation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LR RF Receiver ASK, OOK 315MHz -112dBm 10kbps Castellation
