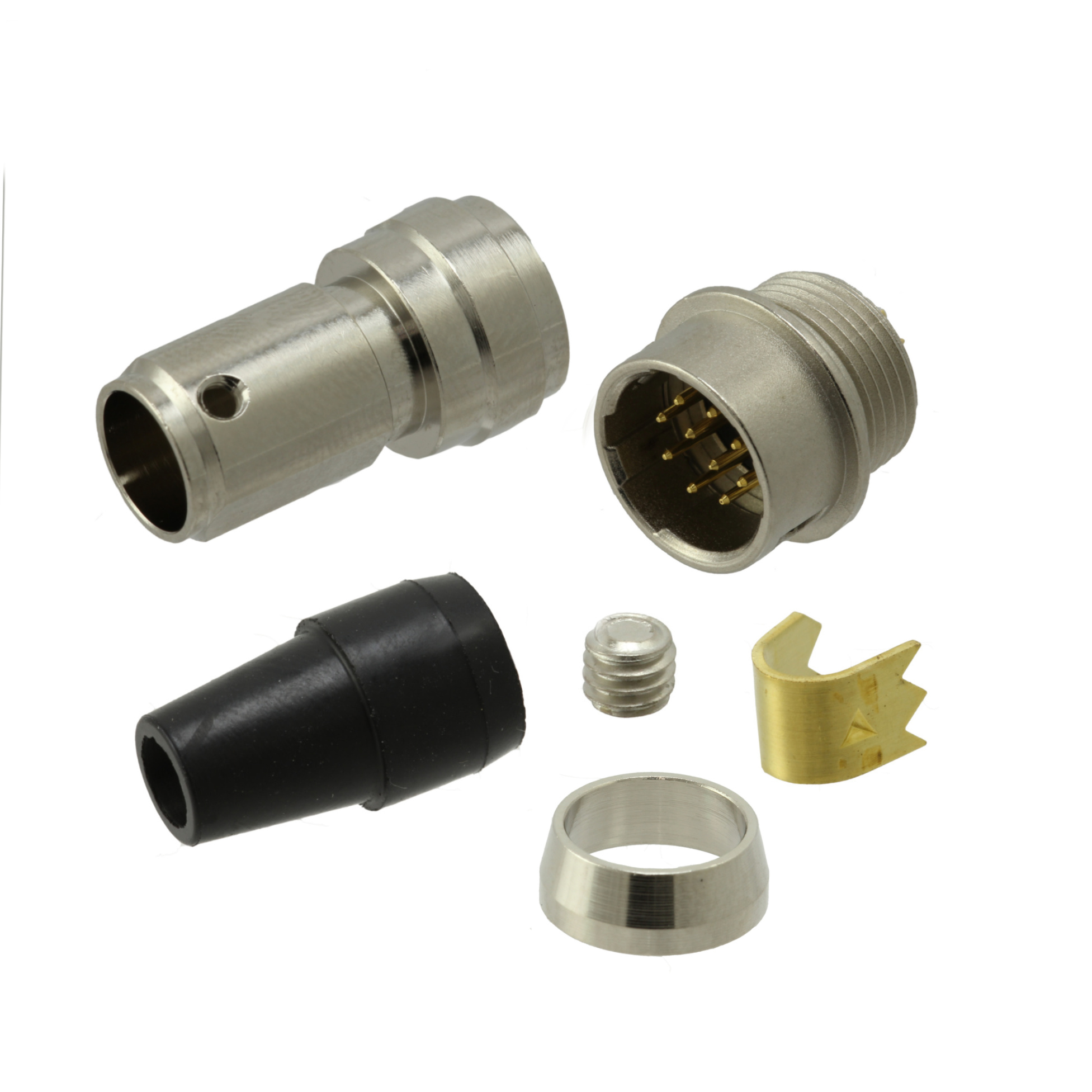

SD-PNN10-MMLAL-S00-000

Active

Adam Tech

CONN RCPT MALE DIN 10POS SOLDER

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT MALE DIN 10POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-PNN10-MMLAL-S00-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [custom]	0.291 in
Cable Opening [custom]	7.39 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Fastening Type	Detent Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	Waterproof
Insert Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	DIN
Shielding	Unshielded

Part	Shell Material	Connector Type	Ingress Protection	Contact Material	Insert Material	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Orientation	Contact Finish Thickness - Mating	Shell Size - Insert	Features	Shielding	Primary Material	Contact Finish - Mating	Applications	Fastening Type	Backshell Material, Plating	Color	Number of Positions	Material Flammability Rating	Mounting Type
Adam Tech SD-PNN10-MMLAL-S00-000	Zinc Alloy	Male Pins Receptacle	Waterproof	Brass	Polyamide (PA46) Nylon 4/6	Nickel	0.291 in	7.39 mm	Keyed	Flash	DIN	Backshell Cable Clamp Strain Relief	Unshielded	Metal	Gold	Industrial	Detent Lock	Brass Nickel	Black Silver	10	UL94 V-0	Free Hanging (In-Line)
