H3AXT-10112-Y4
ActiveHirose Electric USA, Inc.
JUMPER-H1506TR/A2015Y/X 12"
Deep-Dive with AI
Search across all available documentation for this part.
H3AXT-10112-Y4
ActiveHirose Electric USA, Inc.
JUMPER-H1506TR/A2015Y/X 12"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H3AXT-10112-Y4 |
|---|---|
| Color | Yellow |
| Contact End | Pin to Cable (Round) |
| Contact Finish | Tin |
| Length | 304.8 mm |
| Length [x] | 12 in |
| Number of Conductors | 1 |
| Number of Rows | 1 |
| Wire Gauge | 24 AWG |
H3AXT Series
...
| Part | Number of Rows | Length | Length | Number of Conductors | Color | Wire Gauge | Contact Finish | Contact End | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 1 | 152.4 mm | 6 in | 1 | Slate | 28 AWG | Tin | Pin to Cable (Round) | ||
Hirose Electric USA, Inc. | 1 | 203.2 mm | 8 in | 1 | Blue | 28 AWG | Tin | Pin to Cable (Round) | ||
Hirose Electric USA, Inc. | 1 | 1 | Green | 28 AWG | Tin | Pin to Cable (Round) | 5 in | 127 mm | ||
Hirose Electric USA, Inc. | 1 | 203.2 mm | 8 in | 1 | 26 AWG | Tin | Pin to Cable (Round) | |||
Hirose Electric USA, Inc. | 1 | 76.2 mm | 1 | Blue | 24 AWG | Tin | Pin to Cable (Round) | 3 in | ||
Hirose Electric USA, Inc. | 1 | 1 | Yellow | 28 AWG | Tin | Pin to Cable (Round) | ||||
Hirose Electric USA, Inc. | 1 | 254 mm | 1 | Yellow | 24 AWG | Tin | Pin to Cable (Round) | 10 in | ||
Hirose Electric USA, Inc. | 1 | 304.8 mm | 1 | Yellow | 24 AWG | Tin | Pin to Cable (Round) | 12 in | ||
Hirose Electric USA, Inc. | 1 | 1 | Slate | 24 AWG | Tin | Pin to Cable (Round) | 4 " | 101.6 mm | ||
Hirose Electric USA, Inc. | 1 | 254 mm | 1 | Brown | 26 AWG | Tin | Pin to Cable (Round) | 10 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.73 | |
| 30 | $ 0.64 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.44 | |||
| 2500 | $ 0.40 | |||
| 5000 | $ 0.37 | |||
Description
General part information
H3AXT Series

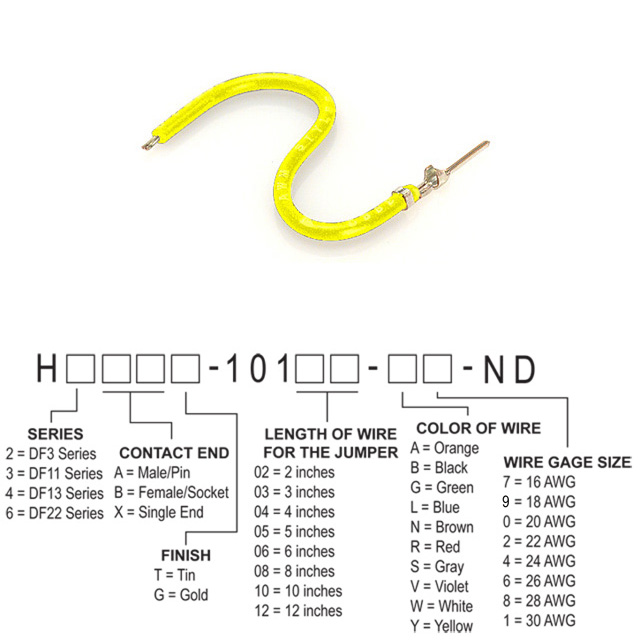

Yellow 24 AWG Jumper Lead Pin to Cable (Round) Tin 12.0" (304.8mm)
Documents
Technical documentation and resources
