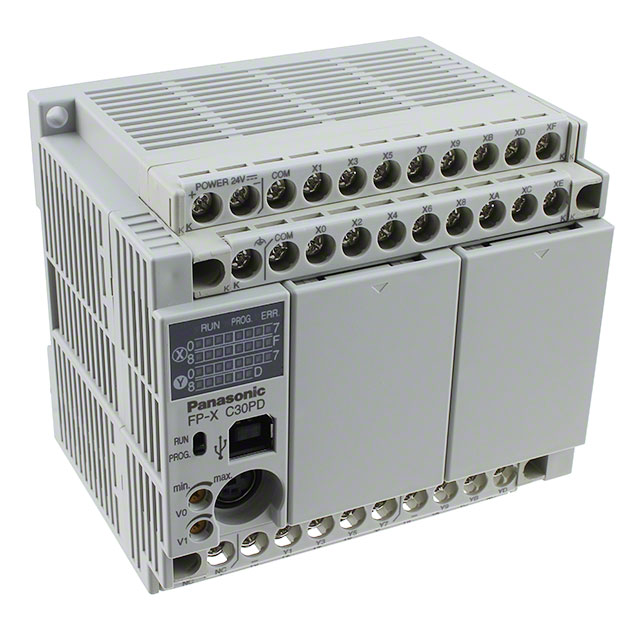

AFPX-C30PD
ObsoletePanasonic Industrial Automation Sales
CONTROL LOGIC 16 IN 14 OUT 24V
Deep-Dive with AI
Search across all available documentation for this part.
AFPX-C30PD
ObsoletePanasonic Industrial Automation Sales
CONTROL LOGIC 16 IN 14 OUT 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFPX-C30PD |
|---|---|
| Approval Agency | cULus, CE |
| Communications | USB, Option Cards Available |
| Display Type | No Display |
| Expandable | 8 Modules |
| Memory Size | 32 K Words |
| Mounting Type | Chassis Mount, DIN Rail |
| Number of Inputs and Type | Digital |
| Number of Inputs and Type | 16 |
| Number of Outputs and Type | Solid State |
| Number of Outputs and Type [custom] | 14 |
| Software | FPWINPRO7 |
| Voltage - Supply | 24 VDC |
| Weight | 1.1 lbs |
| Weight | 499 g |
AFPX-C Series
| Part | Memory Size | Display Type | Mounting Type | Number of Inputs and Type | Number of Inputs and Type | Software | Weight | Weight | Expandable | Number of Outputs and Type [custom] | Number of Outputs and Type | Approval Agency | Communications | Voltage - Supply | Number of Outputs and Type | Number of Outputs and Type [custom] | Weight | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Outputs and Type | For Use With/Related Products | Accessory Type | Number of Outputs and Type [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | 32 K Words | No Display | Chassis Mount DIN Rail | Digital | 16 | FPWINPRO7 | 1.1 lbs | 499 g | 8 Modules | 14 | Solid State | CE cULus | Option Cards Available USB | 24 VDC | |||||||||
Panasonic Industrial Automation Sales | 32 K Words | No Display | Chassis Mount DIN Rail | 32 | FPWINPRO7 | 1.8 lbs | 8 Modules | 28 | CE cULus | Option Cards Available USB | 24 VDC | Option Cards Available | Solid State | 816.5 g | |||||||||
Panasonic Industrial Automation Sales | 32 K Words | No Display | Chassis Mount DIN Rail | Digital | 16 | FPWINPRO7 | 1.1 lbs | 499 g | 8 Modules | CE cULus | Option Cards Available USB | 24 VDC | 14 - Relay | ||||||||||
Panasonic Industrial Automation Sales | 12 K Words | No Display | Chassis Mount DIN Rail | Digital | 8 | FPWINPRO7 | 0.617 lb | 279.87 g | 8 Modules | 6 | CE cULus | Option Cards Available | 24 VDC | Solid State | |||||||||
Panasonic Industrial Automation Sales | 32 K Words | No Display | Chassis Mount DIN Rail | 32 | FPWINPRO7 | 1.8 lbs | 8 Modules | CE cULus | Option Cards Available USB | Relay | 816.5 g | 100 VAC | 240 VAC | 28 | |||||||||
Panasonic Industrial Automation Sales | FP-X Series | Communications Option Card | |||||||||||||||||||||
Panasonic Industrial Automation Sales | FP-X Series | Communications Option Card | |||||||||||||||||||||
Panasonic Industrial Automation Sales | 12 K Words | No Display | Chassis Mount DIN Rail | Digital | 8 | FPWINPRO7 | 0.617 lb | 279.87 g | 8 Modules | CE cULus | Option Cards Available | Relay | 100 VAC | 240 VAC | 6 | ||||||||
Panasonic Industrial Automation Sales | 12 K Words | No Display | Chassis Mount DIN Rail | Digital | 8 | FPWINPRO7 | 0.617 lb | 279.87 g | 8 Modules | 6 | CE cULus | Option Cards Available | Solid State | 100 VAC | 240 VAC | ||||||||
Panasonic Industrial Automation Sales | 32 K Words | No Display | Chassis Mount DIN Rail | Digital | 16 | FPWINPRO7 | 1.1 lbs | 499 g | 8 Modules | CE cULus | Option Cards Available USB | 14 - Relay | 100 VAC | 240 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AFPX-C Series
Programmable Logic Controller (PLC) Chassis Mount, DIN Rail 24VDC
Documents
Technical documentation and resources
No documents available
