1955015

Active

Phoenix Contact

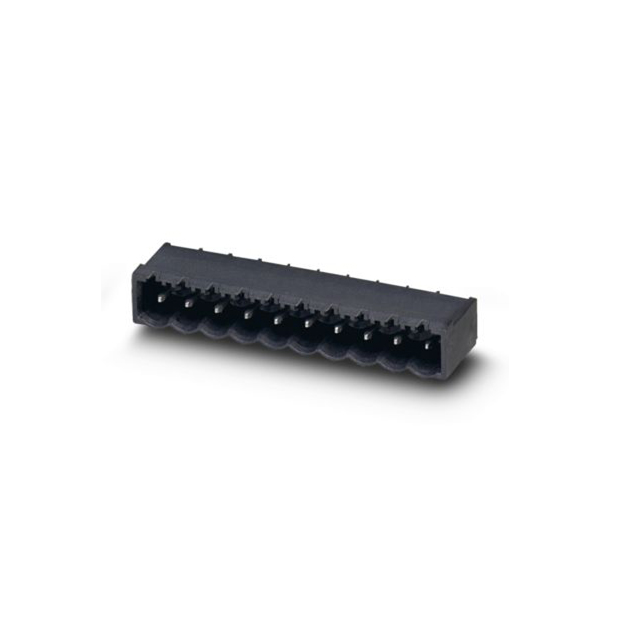

PLUGGABLE TERMINAL BLOCKS 11 POS 5.08MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 11 POS 5.08MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1955015

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	0.102 in
Contact Tail Length	2.6 mm
Current - IEC	12 A
Current - UL	10 A
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	8.61 mm
Insulation Height	0.339 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	11
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	11
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

Pluggable Terminal Blocks CCA 2,5/21-G P20 THR

Part	Voltage - IEC	Housing Material	Insulation Height	Insulation Height	Current - UL	Number of Levels	Header Orientation	Number of Positions	Positions Per Level	Contact Tail Length	Contact Tail Length	Type	Color	Pitch [x]	Pitch [x]	Contact Mating Finish	Current - IEC	Termination Style	Material Flammability Rating	Voltage - UL	Mounting Type
Phoenix Contact 1955015	400 V	Liquid Crystal Polymer (LCP)	8.61 mm	0.339 "	10 A	1	90° Right Angle	11	11	0.102 in	2.6 mm	Header Male Pins Shrouded (4 Side)	Black	0.2 in	5.08 mm	Tin	12 A	Solder	UL94 V-0	300 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks CCA 2,5/21-G P20 THR
