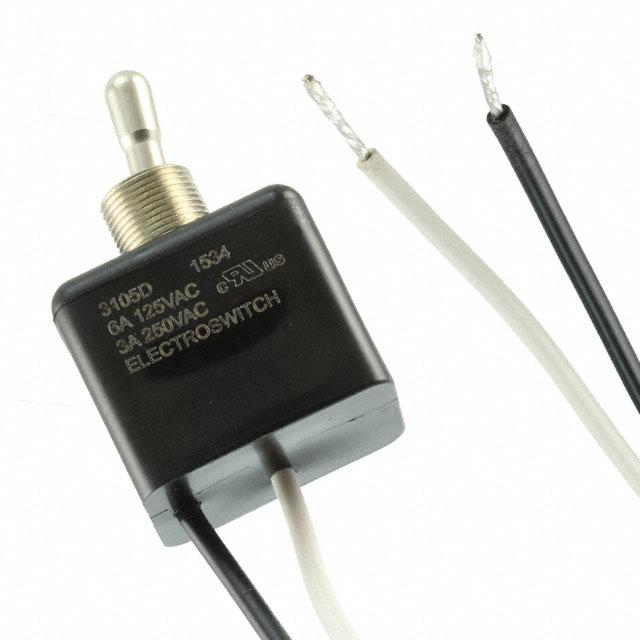

3105D

Active

ELECTROSWITCH

SWITCH TOGGLE SPST 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3105D

Active

ELECTROSWITCH

SWITCH TOGGLE SPST 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3105D

Actuator Length [x]	14.22 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-Off
Termination Style	Wire Leads
Voltage Rating - AC	125 V

7200 Series

Precision Potentiometers

Part	Switch Function	Mounting Type	Termination Style	Circuit	Current Rating (Amps)	Bushing Thread	Actuator Material	Actuator Length [x]	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Electrical Life	Features	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Actuator Marking	Mechanical Life	Color - Actuator/Cap
ELECTROSWITCH T8202	On-Mom	Through Hole Right Angle	PC Pin	DPDT	500 mA	Unthreaded	Nylon Polyamide (PA)	0.5 in	125 V	28 V	Flatted	100000 Cycles	Red Actuator	Non-Illuminated	-20 C	70 °C
ELECTROSWITCH 7102C	On-Off-On		Quick Connect - 0.250" (6.3mm)	SPDT	6 A	15/32-32		14.27 mm	125 V		Standard Round	10000 Cycles		Non-Illuminated	-10 °C	65 °C
ELECTROSWITCH 3301C	On-On		Quick Connect - 0.250" (6.3mm)	SPDT	20 A	15/32-32		14.22 mm	125 V		Standard Round	100000 Cycles		Non-Illuminated	-10 °C	65 °C	IP67 - Dust Tight Waterproof
ELECTROSWITCH 3105D	On-Off		Wire Leads	SPST	6 A	15/32-32		14.22 mm	125 V		Standard Round	25000 Steps		Non-Illuminated	-10 °C	65 °C	IP67 - Dust Tight Waterproof
ELECTROSWITCH 6600	On-Off		Wire Leads	SPST	10 A	15/32-32	Brass Nickel Plated	14.27 mm	125 V		Standard Round	10000 Cycles		Non-Illuminated	-10 °C	65 °C
ELECTROSWITCH 3001C	On-On		Quick Connect - 0.250" (6.3mm)	SPDT	15 A	15/32-32		14.22 mm	125 V		Standard Round	100000 Cycles		Non-Illuminated	-10 °C	65 °C	IP67 - Dust Tight Waterproof
ELECTROSWITCH 3005C	On-Off		Quick Connect - 0.250" (6.3mm)	SPST	15 A	15/32-32		14.22 mm	125 V		Standard Round	100000 Cycles		Non-Illuminated	-10 °C	65 °C	IP67 - Dust Tight Waterproof
ELECTROSWITCH 6601	On-Off		Wire Leads	SPST	10 A	15/32-32	Brass Nickel Plated	20.62 mm	125 V		Standard Round	10000 Cycles		Non-Illuminated	-10 °C	65 °C
ELECTROSWITCH 3105C	On-Off		Quick Connect - 0.250" (6.3mm)	SPST	6 A	15/32-32		14.22 mm	125 V		Standard Round	25000 Steps		Non-Illuminated	-10 °C	65 °C	IP67 - Dust Tight Waterproof
ELECTROSWITCH RK8002	On-On	Through Hole Right Angle	PC Pin	DPDT	500 mA				125 V	28 V	Concave (Curved)	100000 Cycles			-20 C	70 °C		No Marking	500000 Cycles	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
