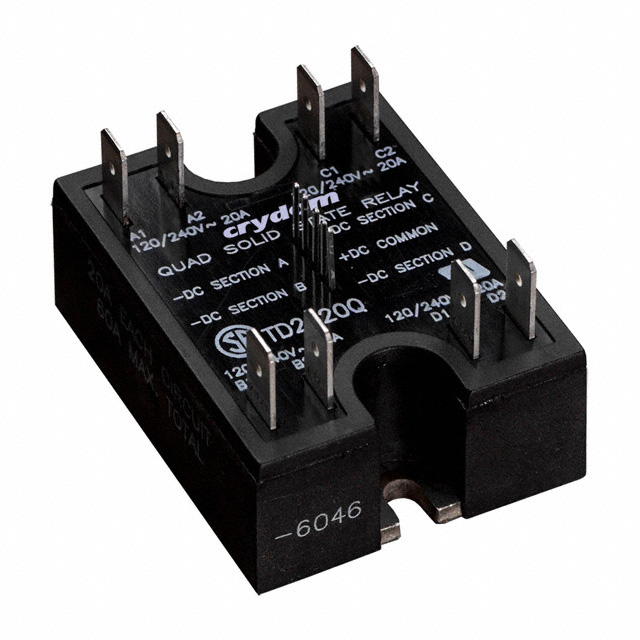

TD2420Q-10
Sensata-Crydom
SSR RELAY SPST-NO 20A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCE Declaration of Conformity
TD2420Q-10
Sensata-Crydom
SSR RELAY SPST-NO 20A 24-280V
Deep-Dive with AI
DocumentsCE Declaration of Conformity
Technical Specifications
Parameters and characteristics for this part
| Specification | TD2420Q-10 |
|---|---|
| Approval Agency | CSA, TUV, cURus, CE |
| Circuit | SPST-NO (1 Form A) x 4 |
| Load Current | 20 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage - Input [Max] | 15 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 477.70 | |
| 10 | $ 454.95 | |||
Description
General part information
TD2420 Series
Solid State SPST-NO (1 Form A) x 4 Hockey Puck
Documents
Technical documentation and resources
