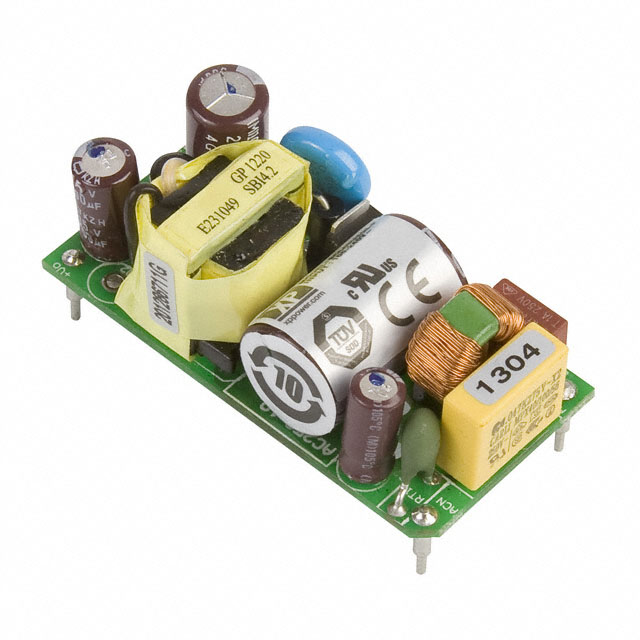

ECL10US03-P

Active

XP POWER

AC/DC CONVERTER 3.3V 10W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 3.3V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Features	Package / Case	Line Regulation	Approval Agency	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Applications	Efficiency	Current - Output (Max) [Max]	Mounting Type	Load Regulation	Weight	Weight	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
XP POWER ECL10US03-P	10 W	Universal Input	4-DIP Module	0.5 %	CSA cUL EN IEC UL	62368-1	-20 °C	70 °C	3.3 V	Open Frame	ITE (Commercial)	72 %	2.6 A	Through Hole	1 %	0.057 lb	25.85 g	1	0.9 "	22.9 mm	50.8 mm	25.4 mm	25.4 mm	2 in
XP POWER ECL10US03-E	10 W	Universal Input	4-DIP Module	0.5 %	CSA cUL EN IEC UL	62368-1	-20 °C	70 °C	3.3 V	Enclosed	ITE (Commercial)	72 %	2.6 A	Through Hole	1 %	0.132 lb	59.87 g	1	0.91 in	23 mm	52.3 mm	1.07 in	27.2 mm	2.06 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	8	$ 26.03
