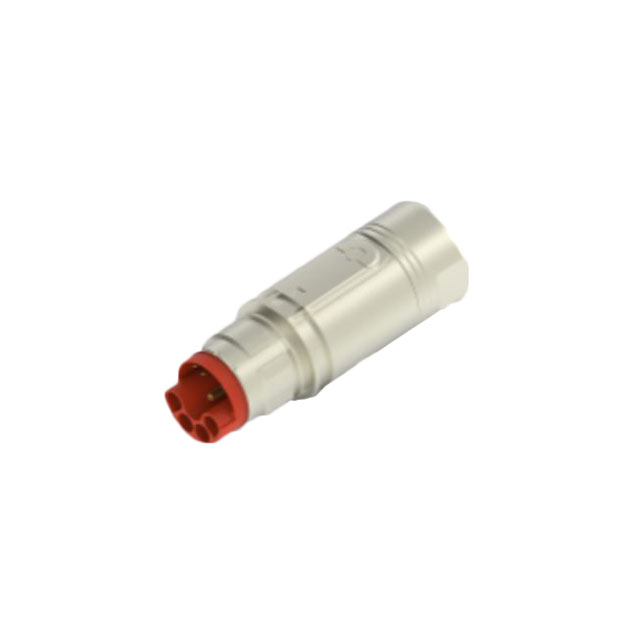

HKA008N00590100000

Active

TE Intercontec

CONN RCPT HSG MALE 11POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 11POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	HKA008N00590100000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	11 (6 + 4 Power + PE)
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-11
Shielding	Shielded
Type	For Male Pins

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Type	Insert Material	Ingress Protection	Orientation	Fastening Type	Material Flammability Rating	Features	Shell Size - Insert	Shielding	Type	Contact Shape	Shell Finish	Includes	Connector Type	Number of Positions	Note	Housing Color
TE Intercontec HKA008N00590100000	-20 C	130 °C	Zinc Die Cast	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	IP66/IP67	Keyed	Push-Twist	UL94 V-0	Backshell Cable Clamp	M23-11	Shielded	For Male Pins	Circular	Nickel	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	11 (6 + 4 Power + PE)	Contacts Not Included	Silver
TE Intercontec HKA002N00590100000	-20 C	130 °C	Zinc Die Cast	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	IP66/IP67	Keyed	Push-Twist	UL94 V-0	Backshell Cable Clamp	M23-11	Shielded	For Male Pins	Circular	Nickel	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	11 (6 + 4 Power + PE)	Contacts Not Included	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 (6 + 4 Power + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
