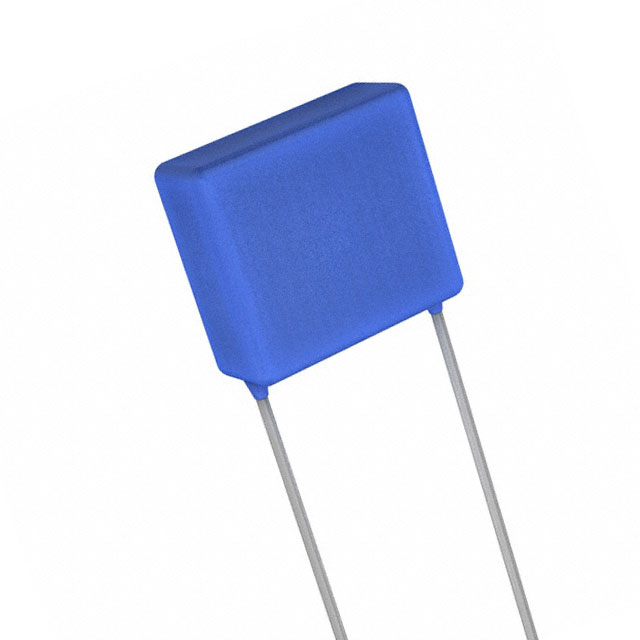

10HV25B224MN

Active

KEMET

CERAMIC CAPACITOR, CERAMIC, 1000V, 20% +TOL, 20% -TOL, X7R, 15% TC, 0.22UF, THROUGH HOLE MOUNT, 6727, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

CERAMIC CAPACITOR, CERAMIC, 1000V, 20% +TOL, 20% -TOL, X7R, 15% TC, 0.22UF, THROUGH HOLE MOUNT, 6727, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Tolerance	Capacitance	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Lead Style	Voltage - Rated	Voltage - Rated
KEMET 10HV25B224MN	Through Hole	Radial	-55 °C	125 °C	High Voltage	20 %	0.22 µF	X7R	0.6 in	15.24 mm	SMPS Filtering	17.02 mm	0.271 "	6.89 mm	0.67 in	14.6 mm	0.575 in	Straight	1 kV	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.22 µF ±20% 1000V (1kV) Ceramic Capacitor X7R Radial
