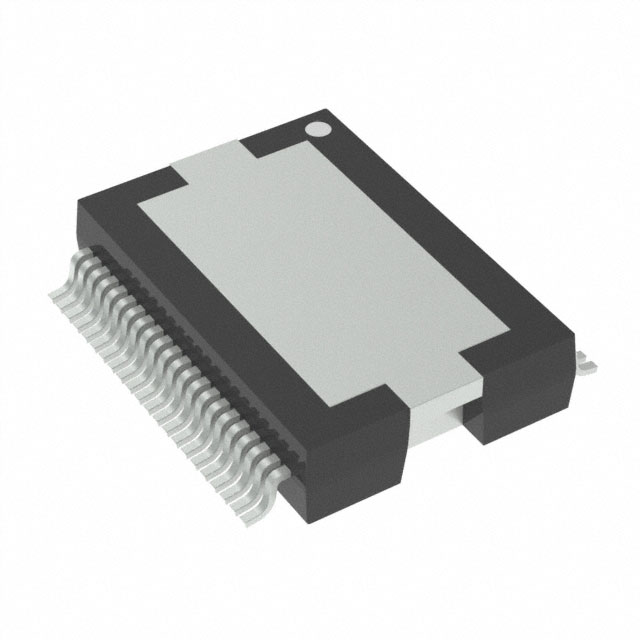

TDF8530TH/N2,112

Active

Freescale Semiconductor - NXP

IC AMP CLASS D QUAD 100W 44HSOP

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC AMP CLASS D QUAD 100W 44HSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TDF8530TH/N2,112

Features	Short-Circuit and Thermal Protection, Standby, Mute, I2C, Depop
Max Output Power x Channels @ Load [custom]	4
Max Output Power x Channels @ Load [custom]	2 Ohm
Max Output Power x Channels @ Load [custom]	100 W
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	4-Channel (Quad)
Package / Case	44-BSSOP, Exposed Pad
Package / Case [custom]	11 mm
Package / Case [custom]	0.433 in
Supplier Device Package	44-HSOP
Type	Class D
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	6 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case [custom]	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]	Type	Mounting Type	Supplier Device Package	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type
Freescale Semiconductor - NXP TDF8530TH/N2,112	85 °C	-40 °C	44-BSSOP Exposed Pad	11 mm	0.433 in	4	2 Ohm	100 W	Class D	Surface Mount	44-HSOP	Depop I2C Mute Short-Circuit and Thermal Protection Standby	24 V	6 V	4-Channel (Quad)
Freescale Semiconductor - NXP TDF8530TH/N2,118	85 °C	-40 °C	44-BSSOP Exposed Pad	11 mm	0.433 in	4	2 Ohm	100 W	Class D	Surface Mount	44-HSOP	Depop I2C Mute Short-Circuit and Thermal Protection Standby	24 V	6 V	4-Channel (Quad)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	720	$ 26.87

General part information

Amplifier IC 4-Channel (Quad) Class D 44-HSOP
