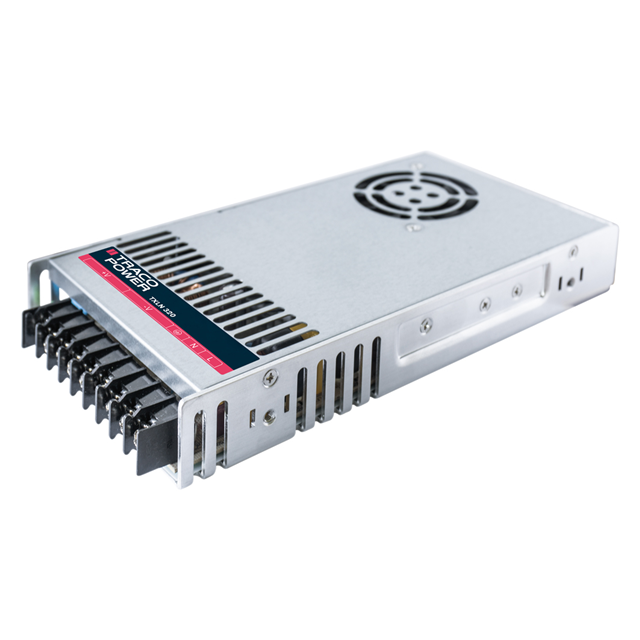

TXLN 320-148
ActiveTraco Power
AC/DC CONVERTER 48V 322W
Deep-Dive with AI
Search across all available documentation for this part.
TXLN 320-148
ActiveTraco Power
AC/DC CONVERTER 48V 322W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TXLN 320-148 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 6.7 A |
| Efficiency | 89 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 322 W |
| Size / Dimension [x] | 212 mm |
| Size / Dimension [x] | 8.35 in |
| Size / Dimension [y] | 4.53 " |
| Size / Dimension [y] | 115 mm |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30 mm |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 375 VDC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 123.20 | |
| 10 | $ 93.54 | |||
Description
General part information
TXLN 320 Series
Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 375 VDC Input
