Q-2I02W0005108i
ActiveAmphenol Custom Cable

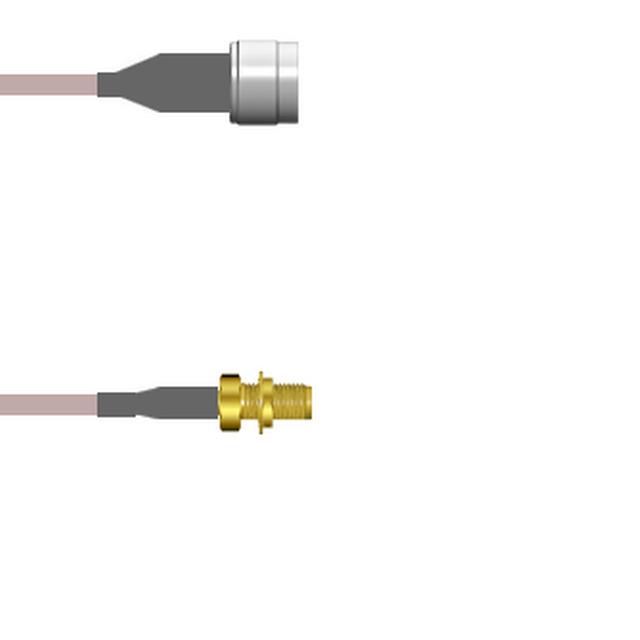

COAX CBL SMA TO N-TYPE 9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2I02W0005108i
ActiveAmphenol Custom Cable
COAX CBL SMA TO N-TYPE 9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2I02W0005108i |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 2.7 m |
| Length | 9 ft |
| Length | 108 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Q-2I02W0 Series
| Part | 1st Connector | Length | Length | Length | 1st Connector Mounting Feature | 2nd Connector Mounting Type | Overall Impedance | Color | Cable Type | Connector Impedance | 2nd Contact Gender | 2nd Connector | 1st Connector Mounting Type | 1st Contact Gender | Features | Style | Frequency - Max [Max] | Cable Impedance | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | SMA Jack | 1200 mm | 4 ft | 48 in | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Copper | RG-316 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | ||
Amphenol Custom Cable | SMA Jack | 2.7 m | 9 ft | 108 in | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Copper | RG-316 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | ||
Amphenol Custom Cable | SMA Jack | 3 m | 9.8 ' | 118.1 in | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Copper | RG-316 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | ||
Amphenol Custom Cable | SMA Jack | 750 mm | 29.53 " | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Copper | RG-316 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | |||
Amphenol Custom Cable | SMA Jack | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Black | RG-174 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | 9.843 " | 250 mm | |||
Amphenol Custom Cable | SMA Jack | 2.1 m | 7 ft | 84 in | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Black | RG-174 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | ||
Amphenol Custom Cable | SMA Jack | 1.5 m | 5 ft | 5 ' | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Black | RG-174 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | ||
Amphenol Custom Cable | SMA Jack | 152.4 mm | 6 in | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Black | RG-174 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | |||
Amphenol Custom Cable | SMA Jack | 2.5 m | 8.2 ' | 98.4 in | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Black | RG-174 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms | ||
Amphenol Custom Cable | SMA Jack | 304.8 mm | 12 " | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 50 Ohms | Black | RG-174 | 50 Ohms | Male | N-Type Plug | Panel Mount | Female | Shielded | SMA to N-Type | 3 GHz | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 132.91 | |
| 25 | $ 130.29 | |||
| 50 | $ 127.67 | |||
| 100 | $ 125.05 | |||
| 250 | $ 122.43 | |||
Description
General part information
Q-2I02W0 Series
Cable Assembly Coaxial SMA to N-Type RG-316 108.0" (2.7m) 9.0'
Documents
Technical documentation and resources
No documents available
