6036751

Active

SICK, Inc.

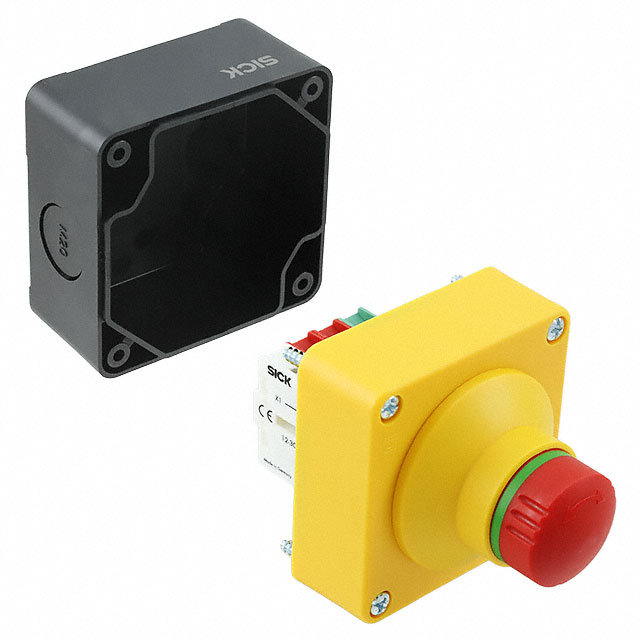

SWITCH ESTOP TWIST RESET 3A 250V

Search across all available documentation for this part.

Active

SICK, Inc.

SWITCH ESTOP TWIST RESET 3A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	6036751

Circuit	3PST-2NC/1NO
Current Rating (Amps)	2 A, 3 A
Features	Status Indicator, Control Box Enclosure
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Chassis Mount
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	250 V
Voltage Rating - DC	24 V

Part	Voltage Rating - AC	Features	Switch Function	Voltage Rating - DC	Termination Style	Ingress Protection	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Reset Operation	Circuit	Illumination Voltage (Nominal)
SICK, Inc. 6036751	250 V	Control Box Enclosure Status Indicator	Off-On On-Off	24 V	Screw Terminal	IP54 - Dust Protected Water Resistant	2 A 3 A	55 °C	-25 °C	Chassis Mount	Twist	3PST-2NC/1NO	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH ESTOP TWIST RESET 3A 250V

Technical documentation and resources
