Q-63063000K072i

Active

Amphenol Custom Cable

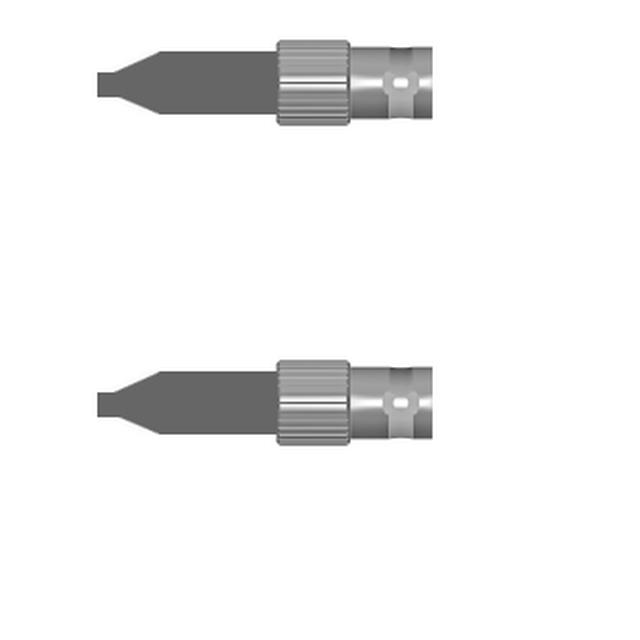

CBL ASSY BNC JACK TO JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-63063000K072i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-63063000K072i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	Belden 4855R
Color	Black
Features	Shielded
Frequency - Max [Max]	12 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	75 Ohms
Style	BNC to BNC

Q-630630 Series

Part	2nd Contact Gender	Color	1st Connector	Style	Frequency - Max [Max]	Cable Type	1st Contact Gender	Length [x]	Length [x]	2nd Connector Mounting Type	Overall Impedance	Features	1st Connector Mounting Type	2nd Connector	Length	Length	Length
Amphenol Custom Cable Q-63063000K.25M	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female	9.843 "	250 mm	Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack
Amphenol Custom Cable Q-63063000K003i	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	3 in	76.2 mm
Amphenol Custom Cable Q-63063000K072i	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	72 in	1.8 m	6 ft
Amphenol Custom Cable Q-63063000K024i	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	24 "	609.6 mm
Amphenol Custom Cable Q-63063000K009i	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	9 "	228.6 mm
Amphenol Custom Cable Q-63063000K048i	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-63063000K001M	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-63063000K2.5M	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-63063000K108i	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-63063000K036i	Female	Black	BNC Jack	BNC to BNC	12 GHz	Belden 4855R	Female			Free Hanging (In-Line)	75 Ohms	Shielded	Free Hanging (In-Line)	BNC Jack	36 in	91.44 cm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 161.45
		25	$ 158.29
		50	$ 155.12
		100	$ 151.96
		250	$ 148.79

Description

General part information

Q-630630 Series

Cable Assembly Coaxial BNC to BNC Belden 4855R 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
