Q-030520003001M

Active

Amphenol Custom Cable

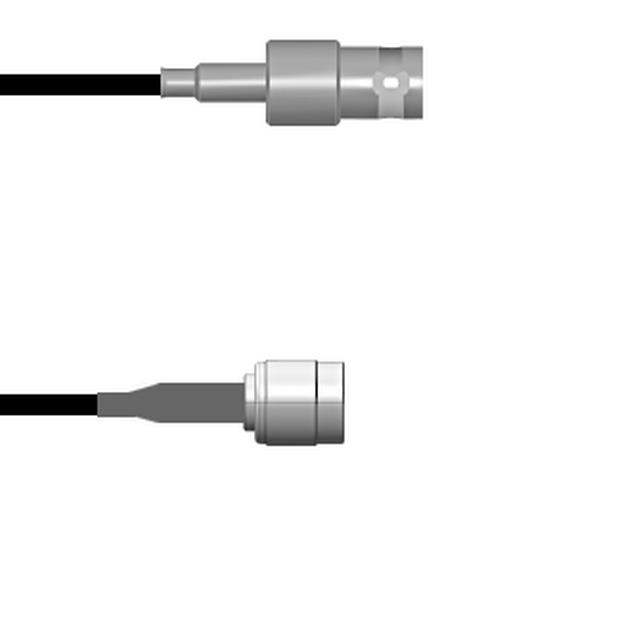

CBL ASSY BNC-TNC JACK-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-030520003001M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030520003001M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-030520 Series

Part	1st Connector	1st Contact Gender	2nd Contact Gender	Overall Impedance	1st Connector Mounting Type	Length	Length	Length	Features	Frequency - Max [Max]	Cable Type	Color	Style	2nd Connector Mounting Type	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-030520005072i	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)	6 ft	72 in	1.8 m	Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520005.75M	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)		29.53 "	750 mm	Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520003001M	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)	3.3 ft	39.4 in	1 m	Shielded	4 GHz	RG-174	Black	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520005012i	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)		12 "	304.8 mm	Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520005003M	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-0305200052.5M	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m	Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520005036i	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)		36 in	91.44 cm	Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520005003i	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)		3 in	76.2 mm	Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520003003i	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)		3 in	76.2 mm	Shielded	4 GHz	RG-174	Black	BNC to TNC	Free Hanging (In-Line)	TNC Plug
Amphenol Custom Cable Q-030520005.25M	BNC Jack	Female	Male	50 Ohms	Free Hanging (In-Line)				Shielded	4 GHz	RG-316	Copper	BNC to TNC	Free Hanging (In-Line)	TNC Plug	9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 44.24
		25	$ 43.37
		50	$ 42.51
		100	$ 41.64
		250	$ 40.77

Description

General part information

Q-030520 Series

Cable Assembly Coaxial BNC to TNC RG-174 39.4" (1.0m) 3.3'
