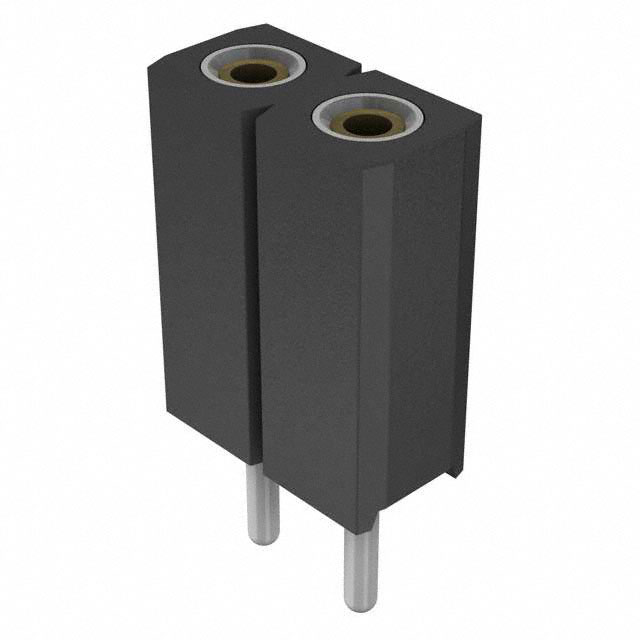

801-93-002-10-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

Documents800, 801 Series (metric)Datasheet

801-93-002-10-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Documents800, 801 Series (metric)Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	801-93-002-10-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

801-93 Series

...

Part	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Contact Shape	Insulation Material	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Number of Rows	Termination	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Type	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Insulation Height	Insulation Height
Mill-Max Manufacturing Corp. 801-93-005-61-001000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	7 mm	0.276 in	200 µin	5.08 µm	All	1	Press-Fit Solder	Black	0.104 in	2.64 mm	Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 801-93-035-10-002000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	4.2 mm	0.165 in	200 µin	5.08 µm	All	1	Solder	Black			Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám	3.18 mm	0.125 in	35
Mill-Max Manufacturing Corp. 801-93-034-10-012000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	4.2 mm	0.165 in	200 µin	5.08 µm	All	1	Solder	Black			Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám	3.18 mm	0.125 in	34
Mill-Max Manufacturing Corp. 801-93-043-10-004000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead		0.272 "	200 µin	5.08 µm	All	1	Solder	Black	0.118 in	3 mm	Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám			43	6.91 mm
Mill-Max Manufacturing Corp. 801-93-022-10-001000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	7 mm	0.276 in	200 µin	5.08 µm	All	1	Solder	Black	0.118 in	3 mm	Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám			22 positions
Mill-Max Manufacturing Corp. 801-93-009-10-004000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead		0.272 "	200 µin	5.08 µm	All	1	Solder	Black	0.118 in	3 mm	Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám			9	6.91 mm
Mill-Max Manufacturing Corp. 801-93-031-10-001000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	7 mm	0.276 in	200 µin	5.08 µm	All	1	Solder	Black	0.118 in	3 mm	Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám			31
Mill-Max Manufacturing Corp. 801-93-059-10-002000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	4.2 mm	0.165 in	200 µin	5.08 µm	All	1	Solder	Black			Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám	3.18 mm	0.125 in	59
Mill-Max Manufacturing Corp. 801-93-023-20-001000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead			200 µin	5.08 µm	All	1	Solder	Black		3.2 mm	Female Socket	Through Hole Right Angle	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám		0.126 in	23	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 801-93-002-10-001000	0.1 in	2.54 mm	Push-Pull	UL94 V-0	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	7 mm	0.276 in	200 µin	5.08 µm	All	1	Solder	Black	0.118 in	3 mm	Female Socket	Through Hole	4.5 A	Gold	-55 °C	125 °C	Beryllium Copper	Receptacle	30 Áin	0.76 Ám			2
