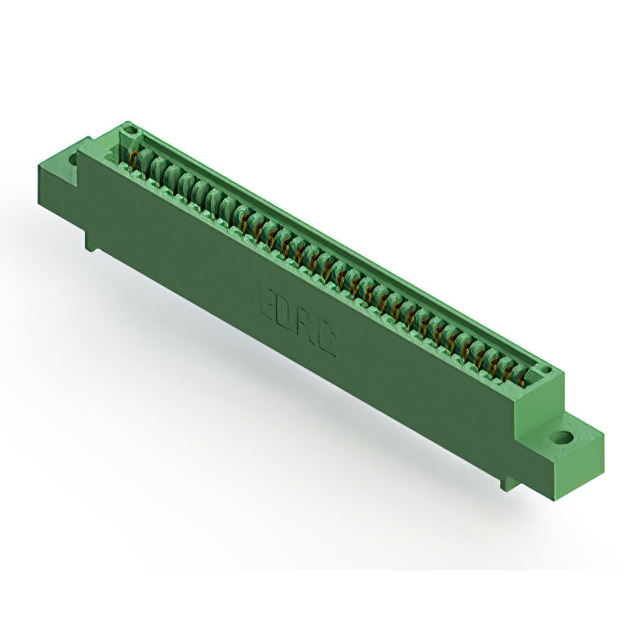

345-029-524-402
ActiveEDAC Inc.
CONN EDGE SINGLE FML 29POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-029-524-402
ActiveEDAC Inc.
CONN EDGE SINGLE FML 29POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-029-524-402 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 29 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-029 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Material - Insulation | Read Out | Card Type | Number of Rows | Number of Positions | Termination Rows | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row | Pitch [x] | Pitch [x] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | Cantilever | 10 Áin | 0.25 Ám | Through Hole Right Angle | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | |||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Solder | Cantilever | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | |||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | |||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder Eyelet(s) | Cantilever | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | Card Guides | ||||
EDAC Inc. | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | Through Hole Right Angle | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | |||
EDAC Inc. | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Solder | Cantilever | 10 Áin | 0.25 Ám | Through Hole Right Angle | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | |||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder | Cantilever | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | Card Guides | ||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Cantilever | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | Card Guides | ||||
EDAC Inc. | Solder | Cantilever | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1 | 29 | 1 | Female | -40 °C | 105 ░C | Gold | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.12 | |
Description
General part information
345-029 Series
29 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
