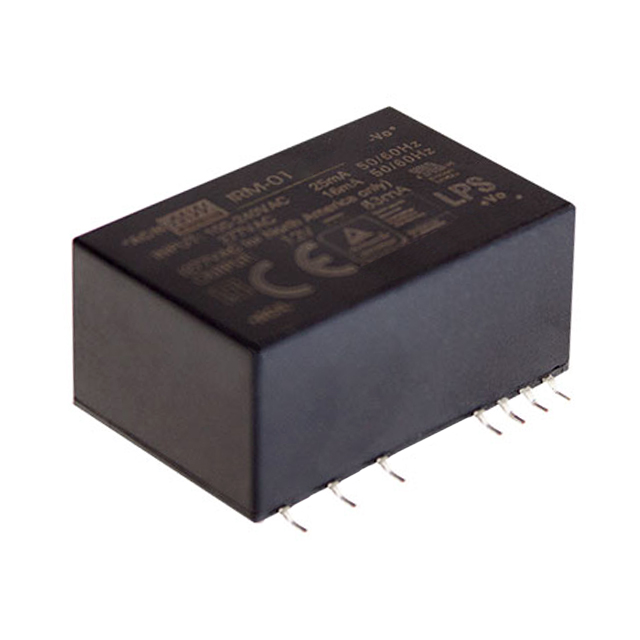

IRM-01-12S

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Line Regulation	Applications	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Load Regulation	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Features	Approval Agency
MEAN WELL USA Inc. IRM-01-12S	0.5 %	ITE (Commercial)	24-SMD Module 14 Leads	0.63 in	1.33 "	0.87 in	22.2 mm	16 mm	33.7 mm	Enclosed	0.5 %	12 V	Surface Mount	83 mA	85 °C	-30 °C	1	74 %	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	CB CE cURus TUV
MEAN WELL USA Inc. IRM-01-15	0.5 %	ITE (Commercial)	4-DIP Module							Enclosed	0.5 %	15 V	Through Hole	67 mA	85 °C	-30 °C	1	75 %	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	CB CE cURus TUV
MEAN WELL USA Inc. IRM-01-9S	0.5 %	ITE (Commercial)	24-SMD Module 14 Leads	0.63 in	1.33 "	0.87 in	22.2 mm	16 mm	33.7 mm	Enclosed	0.5 %	9 V	Surface Mount		85 °C	-30 °C	1	72 %	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	CB CE cURus TUV
MEAN WELL USA Inc. IRM-01-5	0.5 %	ITE (Commercial)	4-DIP Module							Enclosed	0.5 %	5 V	Through Hole	200 mA	85 °C	-30 °C	1	70 %	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	CB CE cURus TUV
MEAN WELL USA Inc. IRM-01-12	0.5 %	ITE (Commercial)	4-DIP Module							Enclosed	0.5 %	12 V	Through Hole	83 mA	85 °C	-30 °C	1	74 %	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	CB CE cURus TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 83mA 85 ~ 305 VAC, 120 ~ 430 VDC Input
