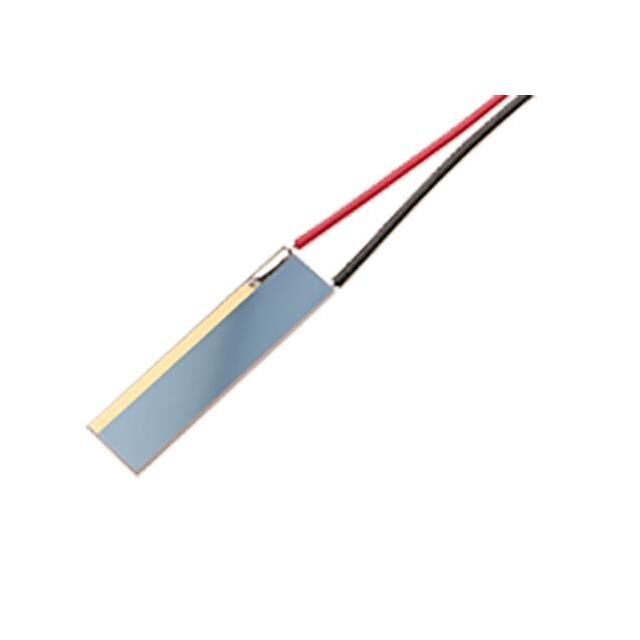

PDB-V617-2
ActiveAdvanced Photonix
SENSOR PHOTODIODE 940NM PVC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDB-V617-2
ActiveAdvanced Photonix
SENSOR PHOTODIODE 940NM PVC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDB-V617-2 |
|---|---|
| Active Area | 232.8 mm² |
| Color - Enhanced | Red |
| Current - Dark (Typ) | 35 nA |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Chip with 30 Gauge PVC Wire |
| Response Time | 2.5 µs |
| Spectral Range [Max] | 1100 nm |
| Spectral Range [Min] | 350 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 25 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 23.05 | |
Description
General part information
PDB-V617 Series
Photodiode 940nm 2.5µs Chip with 30 Gauge PVC Wire
