HR10A-13P-20SC(73)

Active

Hirose Electric USA, Inc.

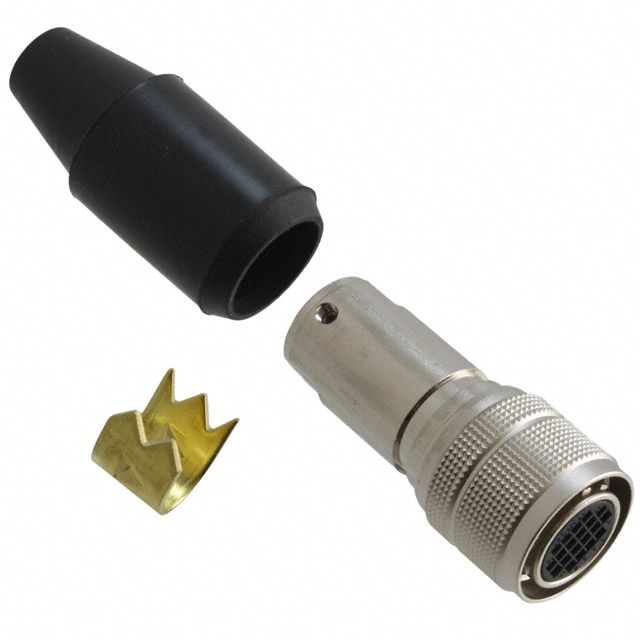

CIRCULAR PUSH PULL CONNECTORS PUSH-PULL F 20 POS CRIMP ST CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HR10 Series

HR10A-13P-20SC(73)

Active

Hirose Electric USA, Inc.

CIRCULAR PUSH PULL CONNECTORS PUSH-PULL F 20 POS CRIMP ST CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet HR10 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR10A-13P-20SC(73)

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Housing Color	Silver
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	13
Shielding	Unshielded
Type	For Female Sockets

HR10A Series

...

Part	Shell Material	Current Rating (Amps)	Primary Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Voltage Rating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Insert Material	Shell Size - Insert	Mounting Feature	Color	Contact Finish - Mating	Number of Positions	Fastening Type	Shell Finish	Termination	Mounting Type	Note	Housing Color	Features	Contact Type	Type	Contact Size	Contact Shape
Hirose Electric USA, Inc. HR10A-7R-6S(73)	Zinc Alloy	2 A	Metal	Keyed	78.7 µin	2 µm	UL94 V-0	100 VAC 140 VDC	Unshielded	-25 °C	85 °C	Receptacle Female Sockets	Phosphor Bronze	Nylon Polyamide (PA)	7	Bulkhead - Rear Side Nut	Silver	Silver	6	Push-Pull	Nickel
Hirose Electric USA, Inc. HR10A-10R-12SADL	Zinc Alloy	2 A	Metal	Keyed	31.5 µin	0.8 µm	UL94 V-0	100 VAC 140 VDC	Unshielded	-25 °C	85 °C	Receptacle Female Sockets	Phosphor Bronze	Polybutylene Terephthalate (PBT)	10	Flange	Silver	Silver	12	Push-Pull	Nickel	Solder	Through Hole Right Angle
Hirose Electric USA, Inc. HR10A-10WTR-12S(74)
Hirose Electric USA, Inc. HR10A-10R-12S(72)	Zinc Alloy	2 A	Metal	Keyed	8 Áin	0.203 Ám	UL94 V-0	100 VAC 140 VDC	Unshielded	-25 °C	85 °C	Receptacle Female Sockets	Phosphor Bronze	Nylon Polyamide (PA)	10	Bulkhead - Rear Side Nut	Silver	Gold	12	Push-Pull	Nickel
Hirose Electric USA, Inc. HR10A-13P-20SC(73)	Zinc Alloy			Keyed			UL94 V-0		Unshielded	-20 C	85 °C	Plug Housing		Polybutylene Terephthalate (PBT)	13				20	Push-Pull	Nickel		Free Hanging (In-Line)	Contacts Not Included	Silver	Backshell Cable Clamp Strain Relief	Crimp	For Female Sockets	1 mm	Circular
Hirose Electric USA, Inc. HR10A-7J-6PC	Zinc Alloy			Keyed			UL94 V-0		Unshielded	-20 C	85 °C	Jack Housing		Polybutylene Terephthalate (PBT)	7				6	Push-Pull	Nickel		Free Hanging (In-Line)	Contacts Not Included	Silver	Backshell Cable Clamp Strain Relief	Crimp	For Male Pins	1 mm	Circular
Hirose Electric USA, Inc. HR10A-13TR-20SB(74)		2 A		Keyed				100 VAC 140 VDC	Unshielded	-25 °C	85 °C	Receptacle Female Sockets			13	Bulkhead - Rear Side Nut			20			Solder	Panel Mount Through Hole
Hirose Electric USA, Inc. HR10A-7P-4S(01)		2 A		Keyed				150 VAC 200 V	Unshielded	-25 °C	85 °C	Female Sockets Plug			7				4	Push-Pull			Free Hanging (In-Line)
Hirose Electric USA, Inc. HR10A-7TP-6P		2 A		Keyed				100 VAC 140 VDC	Unshielded	-25 °C	85 °C	Male Pins Plug			7				6				Free Hanging (In-Line)
Hirose Electric USA, Inc. HR10A-10TR-12SC(73)	Brass			Keyed			UL94 V-0		Unshielded	-20 C	85 °C	Receptacle Housing		Polybutylene Terephthalate (PBT)	10	Bulkhead - Rear Side Nut			12		Nickel			Contacts Not Included	Silver		Crimp	For Female Sockets	1 mm	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.73
		20	$ 35.67
		40	$ 33.03
		100	$ 31.93
		260	$ 30.16

Description

General part information

HR10A Series

20 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Strain Relief
