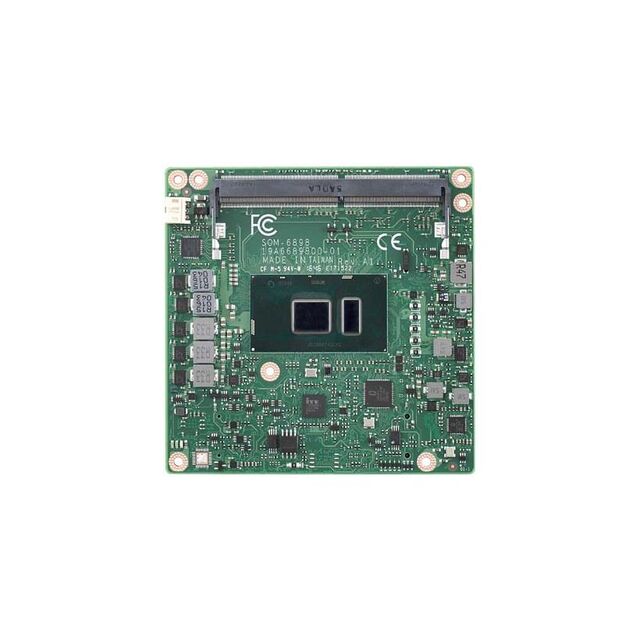

SOM-6898C3-U4A2E

Active

Advantech Corp

SBC 2.4GHZ 2 CORE 32GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

SOM-6898C3-U4A2E

Active

Advantech Corp

SBC 2.4GHZ 2 CORE 32GB RAM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-6898C3-U4A2E

Cooling Type	Fan
Core Processor	Intel Core i3-7100U
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	SATA, PCI
Form Factor	COM Express R2.1 Compact Module, Type 6
Number of Cores	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	4.4 W
RAM Capacity/Installed	32 GB, 0 GB
Size / Dimension [x]	3.74 "
Size / Dimension [x]	94.99 mm
Size / Dimension [y]	3.74 "
Size / Dimension [y]	94.99 mm
Storage Interface	SATA 3.0 (2)
USB	USB 3.0 (4), USB 2.0 (8)
Video Outputs	LVDS, VGA, LCD, HDMI, DP
Watchdog Timer	True

SOM-6898 Series

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Video Outputs	RAM Capacity/Installed	Cooling Type	USB	Ethernet	Number of Cores	Expansion Site/Bus	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Core Processor	Form Factor	Storage Interface	Digital I/O Lines	RS-232 (422, 485)	Speed
Advantech Corp SOM-6898C3-U4A2E	4.4 W	60 °C	0 °C	DP HDMI LCD LVDS VGA	0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	PCI SATA	3.74 "	3.74 "	94.99 mm	94.99 mm	Intel Core i3-7100U	COM Express R2.1 Compact Module Type 6	SATA 3.0 (2)
Advantech Corp SOM-6898C3Z2-U4A1E	15 W	85 °C	-40 °C		0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	Audio LPC PCIe	0.55 in	3.74 "	95 mm	14 mm	Intel Core i3-7100U	COM Express R2.1 Compact Module Type 6	PCIe SATA SPI	8	0
Advantech Corp SOM-6898C3-U4A1E	15 W	60 °C	0 °C		0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	Audio LPC PCIe	0.55 in	3.74 "	95 mm	14 mm	Intel Core i3-7100U	COM Express R2.1 Compact Module Type 6	PCIe SATA SPI	8	0
Advantech Corp SOM-6898C5-U6A2E	17.9 W	60 °C	0 °C	eDP HDMI LCD LVDS	0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	GPIO LCD LVDS PCIe SATA SMBus SPI	3.74 "	3.74 "	94.99 mm	94.99 mm	Intel Core i5-7300U	COM Express R2.1 Compact Module Type 6	eMMC SATA 3.0 (2)			2.6 GHz
Advantech Corp SOM-6898CR-U4A1E	15 W	60 °C	0 °C		0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	Audio LPC PCIe	0.55 in	3.74 "	95 mm	14 mm	Intel Celeron 3965U	COM Express R2.1 Compact Module Type 6	PCIe SATA SPI	8	0	2.2 GHz
Advantech Corp SOM-6898C7-U8A1E	15 W	60 °C	0 °C		0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	Audio LPC PCIe	0.55 in	3.74 "	95 mm	14 mm	Intel Core i7-7600U	COM Express R2.1 Compact Module Type 6	PCIe SATA SPI	8	0	2.8 GHz
Advantech Corp SOM-6898C5Z2-U6A2E	17.9 W	85 °C	-40 °C	eDP HDMI LCD LVDS	0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	GPIO LCD LVDS PCIe SATA SMBus SPI	3.74 "	3.74 "	94.99 mm	94.99 mm	Intel Core i5-7300U	COM Express R2.1 Compact Module Type 6	eMMC SATA 3.0 (2)			2.6 GHz
Advantech Corp SOM-6898CRZ2-U4A1E	15 W	85 °C	-40 °C		0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	Audio LPC PCIe	0.55 in	3.74 "	95 mm	14 mm	Intel Celeron 3965U	COM Express R2.1 Compact Module Type 6	PCIe SATA SPI	8	0	2.2 GHz
Advantech Corp SOM-6898C7Z2-U8A1E	15 W	85 °C	-40 °C		0 GB 32 GB	Fan	USB 2.0 (8) USB 3.0 (4)	10 Mbps 100 Mbps 1000 Mbps	2	Audio LPC PCIe	0.55 in	3.74 "	95 mm	14 mm	Intel Core i7-7600U	COM Express R2.1 Compact Module Type 6	PCIe SATA SPI	8	0	2.8 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 662.55

Description

General part information

SOM-6898 Series

Single Board Computer 2.4GHz 2 Core 32GB/0GB RAM Intel Core i3-7100U

Documents

Technical documentation and resources

No documents available
