C8101.41.03
ActivePrysmian Group

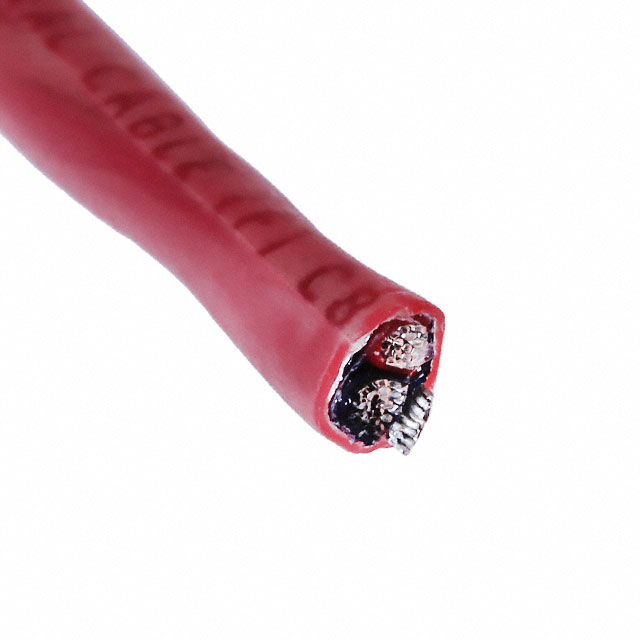

CABLE 2COND 18AWG RED SHLD 50'
Deep-Dive with AI
Search across all available documentation for this part.
C8101.41.03
ActivePrysmian Group
CABLE 2COND 18AWG RED SHLD 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C8101.41.03 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.165 in |
| Jacket (Insulation) Diameter [diameter] | 4.19 mm |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket (Insulation) Thickness | 0.406 mm |
| Jacket (Insulation) Thickness | 0.016 in |
| Jacket Color | Red |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 176.10 | |
| 5 | $ 144.09 | |||
| 10 | $ 112.07 | |||
| 1000 | $ 1.64 | |||
| 2000 | $ 1.56 | |||
| 3000 | $ 1.51 | |||
| 5000 | $ 1.46 | |||
Description
General part information
C8101 Series
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Red 18 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
