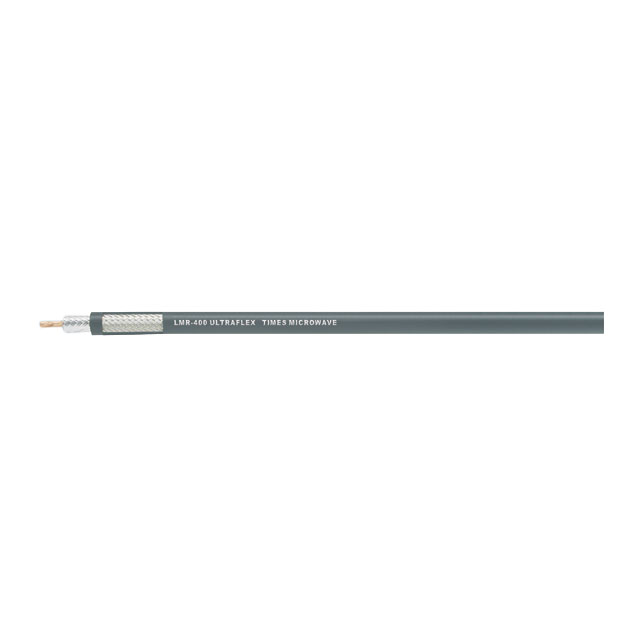

LMR-400-UF-DB

Active

Amphenol Times Microwave Systems

LMR-400 WATERTIGHT CABLE/STRANDE

Deep-Dive with AI

Search across all available documentation for this part.

LMR-400-UF-DB

Active

Amphenol Times Microwave Systems

LMR-400 WATERTIGHT CABLE/STRANDE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-400-UF-DB

Cable Type	Coaxial
Conductor Material	Copper, Bare
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Dielectric Material	Foam Polyethylene (FPE)
Features	Direct Burial, Watertight
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Black
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	83

LMR-400 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Jacket Color	Cable Type	Impedance	Dielectric Material	Shield Type	Conductor Material	VoP, Velocity of Propagation	Conductor Strand	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length	Length	Length	Spool Size	Spool Size	Length [x]	Length [x]
Amphenol Times Microwave Systems LMR-400-PVC	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum Copper Coated	84	Solid	Poly-Vinyl Chloride (PVC)	7.24 mm	0.285 in	10.29 mm	0.405 in
Amphenol Times Microwave Systems LMR-400-UF-DB	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Copper Bare	83		Thermoplastic Elastomer (TPE)	7.24 mm	0.285 in	10.29 mm	0.405 in	Direct Burial Watertight
Amphenol Times Microwave Systems LMR-400-75-FR	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial	75 Ohms	Foam Polyethylene (FPE)	Braid	Copper Bare	85	Solid	Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in	Fire Retardant
Amphenol Times Microwave Systems LMR-400-RR-DB	85 °C	-40 °C	Aluminum	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Copper Bare	84	Solid	Polyethylene (PE)			10.29 mm	0.405 in	Direct Burial Watertight	152.4 m	6000 in
Amphenol Times Microwave Systems LMR-400-UF-FR	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Copper Bare	83		Polyethylene (PE) Riser	7.24 mm	0.285 in	10.29 mm	0.405 in	Fire Retardant			Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems LMR-400-UF	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Copper Bare	83		Thermoplastic Elastomer (TPE)	7.24 mm	0.285 in	10.29 mm	0.405 in		76.2 m	3000 "				3.05 m 30.48 m	10 ft 100 ft
Amphenol Times Microwave Systems LMR-400-PVC-W	85 °C	-40 °C	Aluminum Copper Tinned		Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum Copper Coated	84	Solid	Poly-Vinyl Chloride (PVC)	7.24 mm	0.285 in	10.29 mm	0.405 in
Amphenol Times Microwave Systems LMR-400-FR	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial - Riser	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum Copper Coated	84	Solid	Polyethylene (PE) Riser	7.24 mm	0.285 in	10.29 mm	0.405 in	Fire Retardant						3.05 m	10 ft
Amphenol Times Microwave Systems LMR-400-FR-PVC	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial - Riser	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum Copper Coated	84	Solid	Poly-Vinyl Chloride (PVC) Riser	7.24 mm	0.285 in	10.29 mm	0.405 in	Fire Retardant			Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems LMR-400-75	85 °C	-40 °C	Aluminum Copper Tinned	Black	Coaxial	75 Ohms	Foam Polyethylene (FPE)	Braid	Copper Bare	85	Solid	Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in				Enter Number of Feet in Order Quantity	500 '	152.4 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.95

Description

General part information

LMR-400 Series

Coaxial Cable 50 Ohms

Documents

Technical documentation and resources

No documents available
