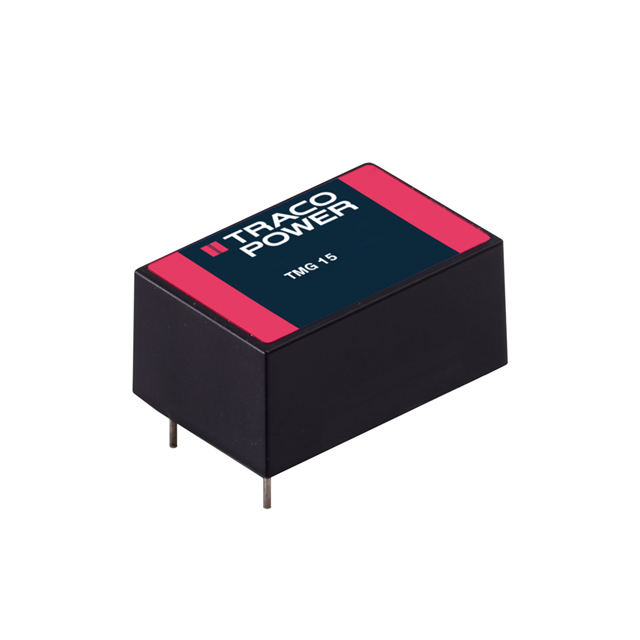

TMG 15115

Active

Traco Power

AC/DC CONVERTER 15V 15W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 15V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Features	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Type	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Efficiency	Approval Agency	Applications	Voltage - Output 1	Line Regulation	Load Regulation
Traco Power TMG 15115	4-DIP Module	Universal Input	264 VAC 370 VDC	90 VAC 120 VDC	15 W	Enclosed	1 A	1	27.2 mm	1.62 "	19.1 mm	41.2 mm	1.07 in	0.75 in	Through Hole	84 %	CE cURus	ITE (Commercial)	15 V
Traco Power TMG 15112	4-DIP Module	Universal Input	264 VAC 370 VDC	90 VAC 120 VDC	15 W	Enclosed	1.25 A	1	27.2 mm	1.62 "	19.1 mm	41.2 mm	1.07 in	0.75 in	Through Hole	84 %	CE cURus	ITE (Commercial)	12 V
Traco Power TMG 15105	4-DIP Module	Universal Input	264 VAC 370 VDC	90 VAC 120 VDC	14 Watts	Enclosed	2.7 A	1	27.2 mm	1.62 "	19.1 mm	41.2 mm	1.07 in	0.75 in	Through Hole	80 %	CE cURus	ITE (Commercial)	5 V	0.5 %	1 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 15V 1A 90 ~ 264 VAC, 120 ~ 370 VDC Input
