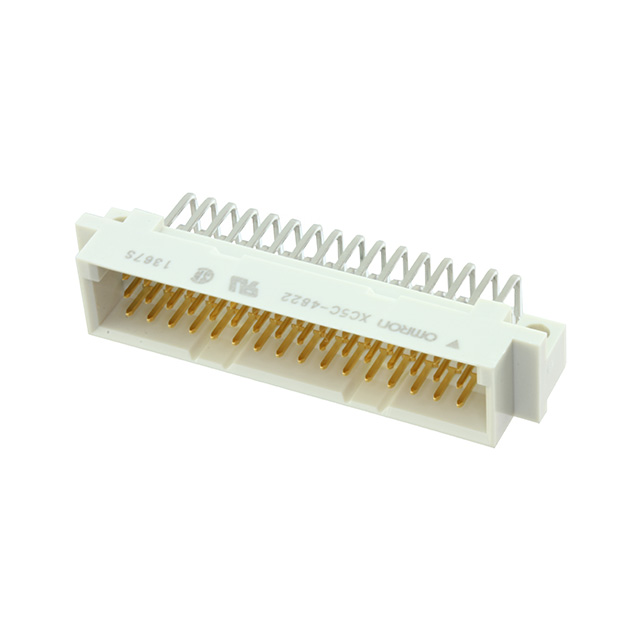

XC5C-4822
ActiveOmron Electronics Inc-EMC Div
CONN DIN PLUG 48POS PCB RA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XC5C-4822
ActiveOmron Electronics Inc-EMC Div
CONN DIN PLUG 48POS PCB RA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XC5C-4822 |
|---|---|
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Current Rating (Amps) | 2 A |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.44 | |
| 10 | $ 4.94 | |||
| 25 | $ 4.68 | |||
| 50 | $ 4.57 | |||
| 100 | $ 4.35 | |||
| 250 | $ 3.81 | |||
| 500 | $ 3.70 | |||
| 1000 | $ 3.16 | |||
| 2500 | $ 2.94 | |||
Description
General part information
XC5C Series
48 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
