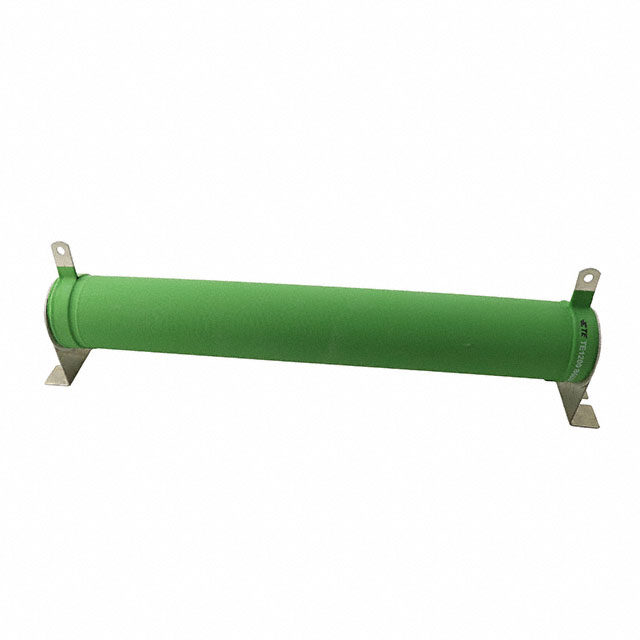

TE1200B680RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 680 OHM 5% 1200W

Deep-Dive with AI

Search across all available documentation for this part.

TE1200B680RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 680 OHM 5% 1200W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE1200B680RJ

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	1200 W
Resistance	680 Ohms
Size / Dimension [diameter]	60 mm
Size / Dimension [diameter]	2.362 in
Size / Dimension [x]	16.339 in
Size / Dimension [x]	415 mm
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE1200 Series

Part	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Coating, Housing Type	Features	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Tolerance	Lead Style	Composition	Package / Case	Power (Watts)
TE Connectivity Passive Product TE1200B680RJ	680 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B120RJ	120 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B27RJ	27 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B12RJ	12 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B3R9J	3.9 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B1K0J	1000 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B820RJ	820 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B150RJ	150 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B1K5J	1500 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W
TE Connectivity Passive Product TE1200B39RJ	39 Ohms	16.339 in	415 mm	60 mm	2.362 in	Silicone Coated	Flame Proof Safety	Brackets	155 °C	-55 °C	440 ppm/°C	5 %	Solder Lugs	Wirewound	Radial Tubular	1200 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 93.21
		10	$ 83.02
		25	$ 81.56
		50	$ 75.73
		100	$ 72.10

Description

General part information

TE1200 Series

680 Ohms ±5% 1200W Wirewound Chassis Mount Resistor

Documents

Technical documentation and resources

No documents available
