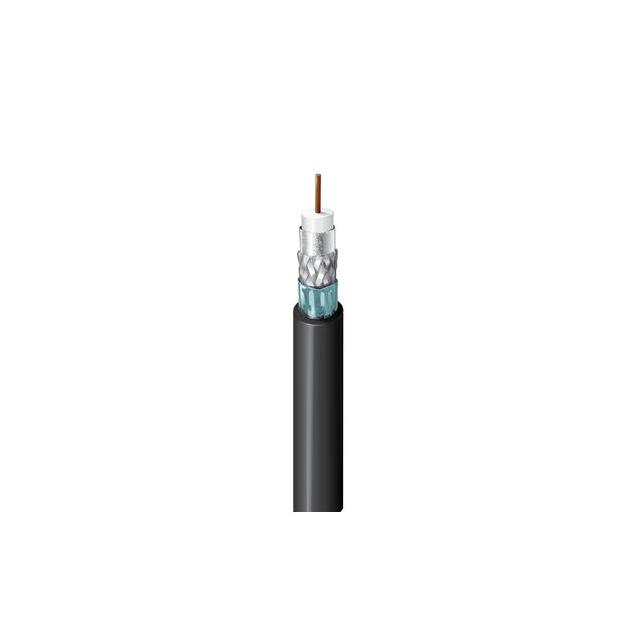

1694F Z4B1000

Active

Belden Inc.

#19 GIFHDLDPE DBLB FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

#19 GIFHDLDPE DBLB FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	1694F Z4B1000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	27 AWG
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.276 in
Jacket (Insulation) Diameter [diameter]	7.01 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Violet
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Double Braid
Usage	Video
VoP, Velocity of Propagation	80
Wire Gauge	19 AWG

Part	Length	Length	Jacket Color	Usage	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Conductor Material	VoP, Velocity of Propagation	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Cable Group
Belden Inc. 1694F Z4B1000	304.8 m	1000 ft	Violet	Video	19 AWG	Poly-Vinyl Chloride (PVC)	0.276 in	7.01 mm	0.18 in	4.57 mm	Double Braid	95 %	-35 °C	75 ░C	Copper Tinned	Copper Bare	80	7	27 AWG	Coaxial	RG-6
Belden Inc. 1694F B591000	304.8 m	1000 ft	Black	Video	19 AWG	Poly-Vinyl Chloride (PVC)	0.276 in	7.01 mm	0.18 in	4.57 mm	Double Braid	95 %	-35 °C	75 ░C	Copper Tinned	Copper Bare	80	7	27 AWG	Coaxial	RG-6
Belden Inc. 1694F G7Y1000	304.8 m	1000 ft		Video	19 AWG	Poly-Vinyl Chloride (PVC)	0.276 in	7.01 mm	0.18 in	4.57 mm	Double Braid	95 %	-35 °C	75 ░C	Copper Tinned	Copper Bare	80	7	27 AWG	Coaxial	RG-6
Belden Inc. 1694F G7W1000	304.8 m	1000 ft	Green	Video	19 AWG	Poly-Vinyl Chloride (PVC)	0.276 in	7.01 mm	0.18 in	4.57 mm	Double Braid	95 %	-35 °C	75 ░C	Copper Tinned	Copper Bare	80	7	27 AWG	Coaxial	RG-6
Belden Inc. 1694F G8M1000	304.8 m	1000 ft	Yellow	Video	19 AWG	Poly-Vinyl Chloride (PVC)	0.276 in	7.01 mm	0.18 in	4.57 mm	Double Braid	95 %	-35 °C	75 ░C	Copper Tinned	Copper Bare	80	7	27 AWG	Coaxial	RG-6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.80

General part information

Coaxial Cable 19 AWG RG-6 1000.0' (304.80m)
